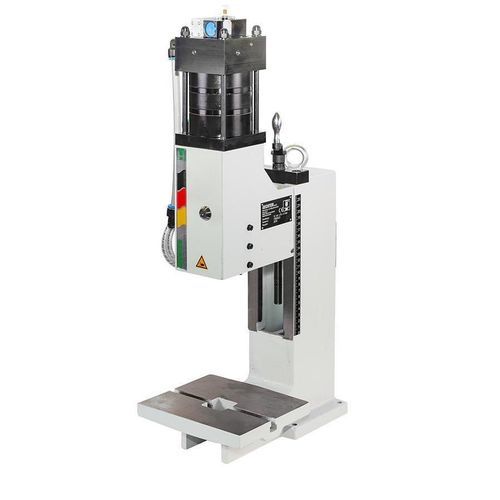

Pneumatic press 12 LPL

compressionwith pedal control

Product overview
Linear acting pneumatic press LPL with a pressing force of 12 kN. Operation via start button or tool-activated contact. Force generation via pneumatic cylinder. Stroke length 4 mm (5.9 mm with safety tool). Installation height adjustable between 73 – 240 mm. Overhang 120 mm. Location bore Ø10 H7. Removable clamped piece. Play-free adjustable prism guide. Height adjustment by hand crank. Standard colour RAL 7035. Weight approx. 42 kg.

Dimension table
A2: 800
B: 580
C: 415
D: 200
E: 120
F: 92
G: 75
U: 21
V: Ø 10 H7
X: 73-240
X1: 4 (5.9)
Ymax: 929

Accessories & supplies (examples shown)

• Base: Standard press with enlarged installation height
• Standard press without accessories
• Standard press with enlarged throat

Accessories

• Centering plate with middle bore
• Press base H approx. 800 x W 690 x D 565 mm adjustable with machine bearing elements
• Press base H approx. 700 x W 690 x D 565 mm adjustable with machine bearing elements
• Support table for lateral attachment to the press base (left side), height adjustable
• Support table for lateral attachment to the press base (right side), height adjustable
• Pneumatic stroke counter
• Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
• Footswitch

Sliding table

• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt

Clamping bracket

• Clamping bracket, approx. H 160 x W 130 x D 58 mm (only for stands with enlarged overhang)
• Clamping bracket, approx. H 160 x W 130 x D 118 mm (only for stands with enlarged overhang)

Unique features
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.

Characteristics / technical specifications

• Press type: Linear acting pneumatic presses
• Operation: Start button or contact release by tool
• Overhang: 120 mm
• Installation height adjustable: 73 – 240 mm
• Stroke length: 4 mm (5.9 mm with safety tool)
• Pressing force / operating pressure: 12 kN
• Force generation: Pneumatic cylinder
• Operating pressure: 3 - 7.8 bar
• Location bore: Ø10 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Height adjustment guide unit: Hand crank
• Fastening guide unit per screw: 90 Nm
• Connection hose: 1/4"
• Standard color: RAL 7035
• Weight: 42 kg
