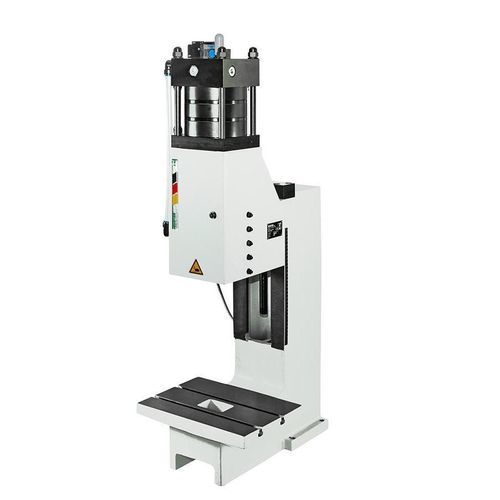

Pneumatic press 33 LPL

togglewith pedal control

Dimensions
A2: 950
B: 760
C: 715
D: 340
E: 200
F: 150
G: 120
U: 44
V: Ø 25 H7
X: 115-370
X1: 4 (5.9)
Ymax: 1390

Accessories (examples listed on product page)

• Standard press without accessories
• Standard press with enlarged throat
• Standard press with enlarged installation height
• Pneumatic stroke counter
• Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
• Footswitch
• Centering plate with middle bore
• Clamping pin without collar
• Clamping pin with collar
• Press base approx. H 800 x W 690 x D 565 mm adjustable with machine bearing elements
• Press base approx. H 700 x W 690 x D 565 mm adjustable with machine bearing elements
• Support table for lateral attachment to the press base (left side), height adjustable
• Support table for lateral attachment to the press base (right side), height adjustable
• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Clamping bracket, approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)
• Clamping bracket, approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)

Unique to GECHTER
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.

Technical specifications

• Press type: Pneumatic toggle press
• Operation: Start button or contact release by tool
• Overhang: 200 mm
• Installation height adjustable: 120 - 370 mm
• Stroke length: 4 mm (5.9 mm with safe tool)
• Pressing force / operating pressure: 33 kN / 6.5 bar
• Force generation: Pneumatic cylinder
• Operating pressure: 3 – 6.5 bar
• Location bore: Ø25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Height adjustment guide unit: Ratchet
• Fastening guide unit per screw: 170 Nm
• Connection hose: 1/2''
• Standard color: RAL 7035
• Weight: 203 kg
