Strain gauge pressure transmitter HWF
4-20 mAHART1/2" UNF

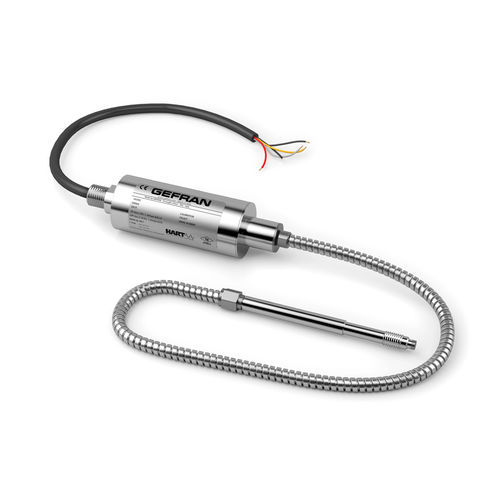

Strain gauge pressure transmitter - HWF - GEFRAN - 4-20 mA / HART / 1/2" UNF
Strain gauge pressure transmitter - HWF - GEFRAN - 4-20 mA / HART / 1/2" UNF
Add to favorites
Compare this product

Characteristics

Technology
strain gauge
Output
4-20 mA, HART
Process connection
1/2" UNF
Fluid
for hot-melt
Material
PTFE
Protection level
IP67
Applications
process, melt
Other characteristics
smart, high-temperature, oil-filled
Pressure range

Min.: 0 bar
(0 psi)

Max.: 35 bar
(507.63 psi)

Precision

0.25 %

Process temperature

Min.: 0 °C
(32 °F)

Max.: 315 °C
(599 °F)

Description

Overview
Oil-filled HWF series pressure transmitter with HART communication, designed for melt and other high-temperature process applications. Fluid-filled hydraulic transmission ensures stable measurement at media temperatures up to 315°C. FM-certified options available for hazardous-area installations.

Product name
  • HWF series pressure sensor / transmitter for melt - high-temperature applications


Selected configuration
Order code: HW-F-0-N-H-B35U-1-4-0-P-E-T5-0000000X000X0
  • Output signal: F - 4...20 mA (HART)
  • Version: 0 - Rigid rod
  • Connector: N - NPT Cable
  • Accuracy class: H - 0.25% FS
  • Range: B35U - 35 bar
  • Thread: 1 - 1/2-20 UNF (selected)
  • Rigid rod length: 4 - 153 mm (6”)
  • Flexible rod length: 0 - None
  • Performance Level: P - PL = d
  • Autozero: E - External autozero
  • Tclass / Ambient: T5 (-20°C / +85°C)


Key features
  • Oil-filled hydraulic transmission for thermal stability in high media temperatures
  • HART protocol (smart transmitter functionality)
  • FM approvals available for explosion-proof and dust-ignition-proof installations
  • High accuracy options: < ±0.25% FS (H) and < ±0.5% FS (M)
  • Multiple mechanical interfaces: 1/2-20 UNF, M18x1.5, or flange mounting


Technical description
  • Measuring principle: hydraulic (fluid-filled) pressure transmission to a strain-gauge sensing element
  • Diaphragm: 17-7 PH corrugated diaphragm with GTP+ protective coating
  • Ingress protection and mounting: Type 4X, IP67 for indoor/outdoor hazardous areas
  • Ambient temperature ratings: T5 Ta = -20°C to +85°C; T6 Ta = -20°C to +60°C


Applications & certifications
  • Designed for melt pressure measurement (extrusion, injection molding) and other high-temperature process control
  • FM explosion-proof and dust-ignition-proof certifications for hazardous areas; SIL2 / PLd options available on certified variants


Specifications
  • Product family: HWF (melt / high temperature)
  • Manufacturer: Gefran
  • Example range (selected): 35 bar (B35U)
  • Media temperature capability: up to 315°C (depending on configuration)
  • Output: 4...20 mA (HART)
  • Accuracy classes: H = 0.25% FS; M = 0.5% FS
  • Typical mounting options: rigid rod, rigid+flexible rod, thermocouple, exposed capillary, flange
