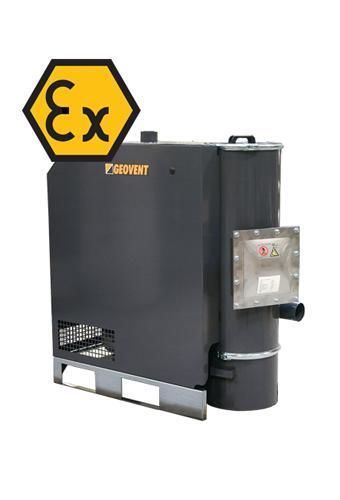

Dust suction unit HVUX

industrial

Overview
HVUX and HVUX Lite are high vacuum units for extraction of grinding and brake dust and for general workplace cleaning. They are designed to operate on the dirty side of the filter in dust-filled atmospheres (Zone 21/22) and use a two-step cyclone filtration delivering 99.9% efficiency. Units are available in standard or customised configurations with optional ATEX side channel blower, explosion relief panel, police safety filter and tailored control panels with alarms and monitoring.

What do you get?

• A high-vacuum extraction unit for grinding dust, brake dust and general cleaning operations.
• Safe operation in explosive dust atmospheres on the dirty side of the filter (Zone 21/22).
• Two-step cyclone filtration with 99.9% efficiency and automatic cleaning.
• Optional ATEX-certified side channel blower, explosion relief panel and burst sensor.
• Integrated police/safety filter to protect against main-filter leakage.
• Customisable control panel with start/stop, alarms and monitoring options.
• Durable motor system with up to 20,000 hours rated lifetime.

Product information
The HVUX range (including HVUX Lite) is built for demanding industrial extraction tasks such as grinding dust and brake dust removal, vehicle preparation and general workshop cleaning. The systems are designed for continuous, reliable operation while minimising maintenance requirements.

Both models incorporate a robust two-step cyclone filtration arrangement achieving 99.9% particle separation. Filters are antistatic, aluminium-coated polyester with an expected service life of 4,000–8,000 hours under normal conditions. An integrated automatic cleaning system maintains filter performance and reduces downtime.

The HVUX series is configured to handle explosive dust atmospheres safely on the dirty side of the filter (Zone 21/22). The standard configuration is not ATEX-classified downstream of the filter but can be supplied with an ATEX-approved side channel blower and a customised control panel, plus explosion relief panel and burst sensor where required.

An additional police/safety filter provides backup protection in case of main-filter leak, and the motor system is specified for long service life (up to 20,000 hours). Control panels are available in ABS (Lite: steel) with automation, alarm and monitoring options tailored to operational needs.

Technical data
Material: Powder-coated steel
Installation: Indoor
Max. air volume: 939 m³/h
Max. pressure: 30,000 Pa
Voltage: 3×400 V
Current: 11.1 – 21.6 A
Power: 5.5/6.5 kW – 11/13 kW
Frequency: 50 / 60 Hz
ATEX zone: 21 (dirty side)
Dimensions (L×W×H): 800 × 1,812 × 2,060 mm
Weight: 280 – 310 kg

Key features / specifications

• Two-step cyclone filtration with 99.9% efficiency and automatic cleaning
• Antistatic, aluminium-coated polyester filters (service life 4,000–8,000 hours under normal use)
• Integrated police/safety filter for leakage protection
• Optional ATEX-certified side channel blower, explosion relief panel and burst sensor
• Control panel with alarms, monitoring and automation options (ABS; Lite control panel in steel)
• Durable motor system—up to 20,000 hours motor lifetime
• Material: Powder-coated steel; installation: indoor
• Max. air volume: 939 m³/h; Max. pressure: 30,000 Pa
• Voltage/Power: 3×400 V; 5.5/6.5 kW – 11/13 kW; Current: 11.1 – 21.6 A; Frequency: 50/60 Hz
• Dimensions (L×W×H): 800 × 1,812 × 2,060 mm; Weight: 280–310 kg
