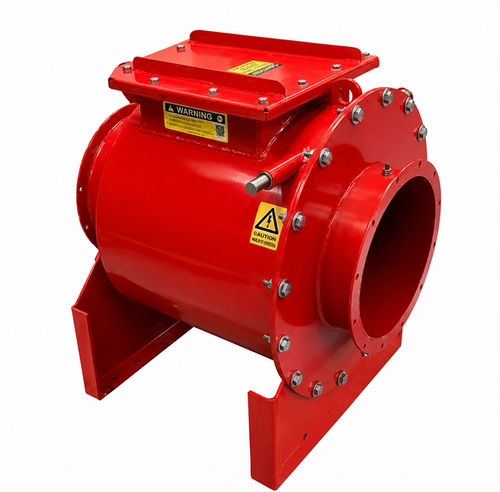

Disc non-return valve

for airflangemounting flange

Overview
The Geovent non-return valve is an ATEX-certified safety device that prevents explosion propagation in duct systems. Installed between the filter and the plant, the internal flap mechanically closes during an explosion to isolate the affected area. The valve operates without power, sensors or electronics, is maintenance-free under normal operation, and is suitable for horizontal ducting systems handling organic or non-metallic dust.

What do you get?

• Certified ATEX safety for explosive dust environments.
• Mechanical function with no need for electricity.
• Easy installation in both new and existing systems.
• Practically maintenance-free with long-lasting performance.
• Minimal pressure loss during normal operation.
• Durable steel body with HARDOX closing flap.
• Suitable for horizontal ducting from Ø200 to Ø600 mm.

Construction and suitability
The valve is constructed from robust 16MO3 steel and fitted with a HARDOX HB 400 closing flap. The unit is powder coated in RAL 3020 red. It is designed for ATEX zones 20, 21 and 22 and for dust classified as St1 (organic and non-metallic dust). The valve is rated for Kst values up to 200 bar·m/s and a maximum explosion overpressure Pred,max of 0.5 bar. The product is available for horizontal ducts and diameters from Ø200 to Ø600 mm and can be used indoors or outdoors.

Installation & accessories
Installation uses welded FA flanges for quick and straightforward mounting. The valve requires no electrical supply for its explosion-retention function. Available accessories include position sensors, dust level indicators and a remote unlocking system for valves installed in hard-to-reach locations.

Notes
Designed to isolate and protect the rest of the plant during an explosion by automatic mechanical closure of the flap. Intended for use where minimal pressure loss and reliable passive safety are required.

Caractéristiques / spécifications techniques

• Material: 16MO3 steel (steel body).
• Closing flap: HARDOX HB 400.
• Surface finish: Powder coated, RAL 3020 (red).
• ATEX zones: Suitable for zones 20, 21 and 22.
• Dust type: Organic / non-metallic dust (St1).
• Kst rating: Up to 200 bar·m/s.
• Maximum explosion overpressure (Pred,max): 0.5 bar.
• Installation: Horizontal ducting; welded FA flanges; indoor/outdoor use.
• Diameter range: Ø200 to Ø600 mm.
• Min. air flow: 15 m/s.
• Max. air flow: 35 m/s.
• Temperature range: -20°C to +60°C.
• Dimensions (examples): 590 x 470 x 510 mm; 1,340 x 1,352 x 1,413 mm.
• Weight range: 45 – 294 kg.
• Power: Passive mechanical operation (no electrical power required for closure).
• Maintenance: Practically maintenance-free under normal operation.
• Available accessories: Position sensors, dust level indicators, remote unlocking system.
