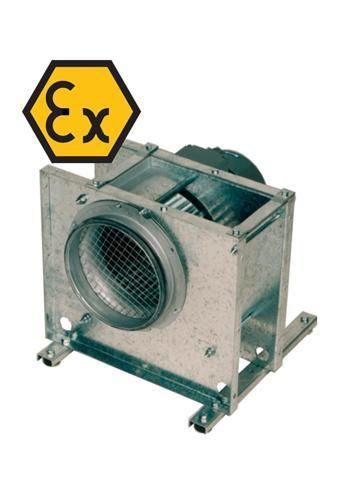

Extraction fan LSX/MSXcentrifugalventilationexhaust
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- extraction, exhaust, ATEX, ventilation
- Material
- galvanised steel, stainless steel
- Applications
- for industrial applications
- Air flow
4,900 m³/h
(173,041.867 ft³/h)
Description
Product overview
The LSX and MSX are ATEX-compliant extraction fans engineered for safe, reliable ventilation in hazardous areas (zones 1 and 2/22). LSX is intended for comfort ventilation and light process extraction; MSX is designed for demanding industrial extraction such as welding fumes, exhaust gases and vapours. Airflow ranges from 400 m³/h to 4,900 m³/h, suitable for single extraction points and centralised systems.
What do you get?
Product information
Depending on the ATEX zone and application, motors can be specified as EEx e, EEx d or EEx de. Acid-proof construction is available using ANSI 316L stainless steel components. Design features include protection against electrostatic discharge and inlet spark protection. Units are suitable for indoor and outdoor installation and can be supplied in configurations optimised for comfort or industrial process extraction.
Technical data
Features / technical specifications
The LSX and MSX are ATEX-compliant extraction fans engineered for safe, reliable ventilation in hazardous areas (zones 1 and 2/22). LSX is intended for comfort ventilation and light process extraction; MSX is designed for demanding industrial extraction such as welding fumes, exhaust gases and vapours. Airflow ranges from 400 m³/h to 4,900 m³/h, suitable for single extraction points and centralised systems.
What do you get?
- ATEX-certified fans for use in zones 1 and 2/22
- Airflow up to 4,900 m³/h for individual or central extraction systems
- LSX for comfort ventilation and light process extraction
- MSX for industrial extraction of welding fumes, exhaust gases and vapours
- Low-noise operation for low-pressure applications
- Integration with Geovent automatics (PowerSmart, MultiBox IV)
- Customisable configurations, including acid-proof ANSI 316L options
Product information
Depending on the ATEX zone and application, motors can be specified as EEx e, EEx d or EEx de. Acid-proof construction is available using ANSI 316L stainless steel components. Design features include protection against electrostatic discharge and inlet spark protection. Units are suitable for indoor and outdoor installation and can be supplied in configurations optimised for comfort or industrial process extraction.
Technical data
- Material: galvanised steel (acid-proof option: ANSI 316L stainless steel)
- Installation: indoor / outdoor
- Max. air volume: 4,900 m³/h
- Max. pressure: 1,840 Pa
- Voltage: 3×400 V
- Current: 0.9 – 6.6 A
- Power: 0.25 – 3.3 kW
- Weight: 12 – 47 kg
Features / technical specifications
- ATEX zones: 1 and 2/22
- Airflow range: 400 m³/h to 4,900 m³/h
- Applications: comfort ventilation, light process extraction, welding fumes, exhaust gases, vapours
- Motor options: EEx e, EEx d, EEx de
- Construction options: galvanised steel standard; ANSI 316L for acid-proof versions
- Protection: electrostatic discharge and inlet spark protection
- Compatible with Geovent automatics (PowerSmart, MultiBox IV)
- Suitable for individual and central extraction systems
