Wall-mounted extraction arm ASX

flexiblearticulateddust

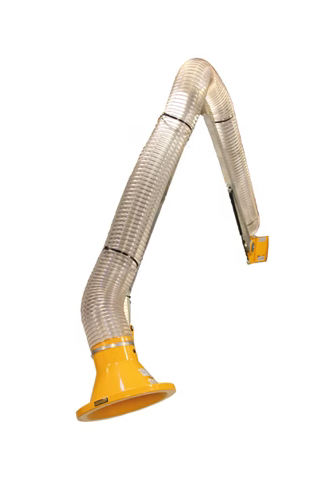

Description The Geovent ASX extraction arm is ATEX-compliant for extraction of flammable gases, fumes and dust in explosive atmospheres. Built for precise positioning in demanding industrial environments, the arm combines external support arms, a lightweight swivel hose and multiple articulation points to ensure controlled, ergonomic handling.

What do you get?

• ATEX-compliant arm certified for explosive gas and dust atmospheres.
• External PUR hose with support arms for simple, accurate positioning.
• Ergonomic design with smooth maneuverability and multiple articulation points.
• Hood options in diameters Ø80 mm to Ø200 mm; larger hoods include integrated ergonomic handles.
• External antistatic PUR hose grounded via a copper spiral.
• Wall bracket with 270° rotation for wide working range.
• Standard lengths 2 m, 3 m or 4 m; extendable up to 9 m using extension arm.

Product information The ASX arm is designed to meet ATEX Directive 2014/34/EU and is suitable for extraction of flammable media such as solvent vapors, dusts from food and pharmaceutical processes, and fuel vapors. The external PUR hose is lightweight and antistatic; hose grounding is provided by a copper spiral and the arm features double grounding with resistance below 10 kΩ. The kinematic layout includes three stable joints and two flexible swivel points for precise positioning. A rotatable wall bracket provides 270° coverage. Hoods are finished in yellow RAL1007 (powder coating); larger hood sizes have integrated handles. Lengths available: 2,000 mm, 3,000 mm or 4,000 mm, extendable up to 9,000 mm with extension arm.

Technical specifications

• Compliance: ATEX Directive 2014/34/EU (suitable for explosive gas and dust atmospheres).
• Max. air volume: 2,000 m³/h.
• Hood connection diameters: Ø80 – Ø200 mm.
• Standard arm lengths (L): 2,000 mm, 3,000 mm or 4,000 mm; extendable up to 9,000 mm with extension arm.
• Temperature rating: continuous 90°C; short-term up to 125°C.
• Weight: approx. 8 – 12 kg depending on configuration.
• Hose: external PUR hose, antistatic, grounded via copper spiral.
• Grounding: arm double-grounded; resistance below 10 kΩ.
• Joints and maneuverability: three stable joints and two flexible swivel points for precise positioning.
• Mounting: rotatable wall bracket with 270° flexibility.
• Finish: hoods powder-coated in yellow (RAL1007) for standard options.
