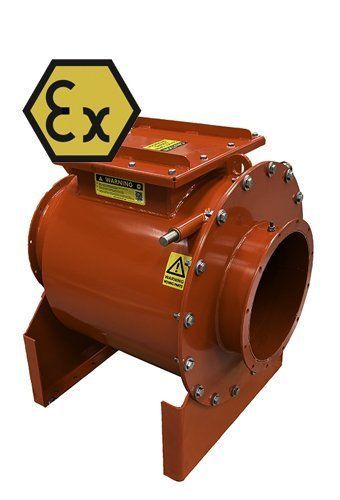

Swing check valve 16 series

with flangesafetysteel

Product overview The Geovent non-return valve is an ATEX-certified safety device designed to prevent explosion propagation in industrial duct systems. The internal flap closes mechanically during an explosion pressure wave to isolate the affected section. The valve operates without power, sensors or electronic components, is virtually maintenance-free, and is suitable for indoor and outdoor installation in horizontal ducts handling organic or non-metallic dust (St1). It is available in diameters Ø200–600 mm and minimizes pressure loss during normal operation.

What do you get?

• ATEX certification for explosive dust atmospheres (zones 20, 21, 22).
• Mechanical non-return function requiring no electrical power.
• Quick installation in new or existing ductwork via welded FA flanges.
• Low maintenance in normal operation.
• Minimal pressure drop during normal operation.
• Steel body with HARDOX HB400 closing flap.
• Suitable for horizontal ducts, diameters Ø200–Ø600 mm; supports Kst up to 200 bar·m/s.

Product information Constructed from 16MO3 steel and fitted with a HARDOX HB400 closing flap, the valve is powder coated RAL 3020 (red) for corrosion protection. It is certified for ATEX zones 20, 21 and 22 and intended for systems handling organic and non-metallic dust (St1). Installation is done via welded FA flanges; no power supply is required. Accessories include position sensors, dust level indicators and a remote unlocking system for valves installed in hard-to-reach locations.

Technical data Material: Steel
Installation: Indoor/Outdoor
Min. air flow: 15 m/s
Max. air flow: 35 m/s
Temperature range: -20°C to +60°C
Dimensions (LxWxH): 590 x 470 x 510 mm / 1,340 x 1,352 x 1,413 mm
Weight: 45–294 kg
Additional limits: suitable for Kst up to 200 bar·m/s and Pred,max 0.5 bar (organic/non-metallic dust)
