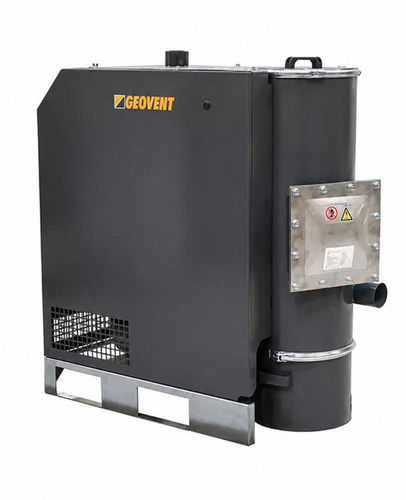

Lubricated vacuum unit HVUX

industrialautomaticwith vacuum controller

Product overview
HVUX and HVUX Lite are high vacuum units for extraction of grinding dust, brake dust and general workplace cleaning. Designed to operate on the dirty side of the filter in explosive dust atmospheres (Zone 21/22). Available in standard or customised configurations with optional ATEX-rated components and tailored control/monitoring features.

Key features

• High vacuum extraction for grinding dust, brake dust and industrial cleaning.
• Suitable for operation in explosive dust zones (Zone 21/22) on the dirty side of the filter.
• Two-step cyclone filtration with 99.9% efficiency and automatic cleaning.
• Optional ATEX-certified side channel blower and explosion relief panel.
• Integrated police filter for added protection against filter leakage.
• Customisable control panel with alarm and monitoring options.
• Durable motor system with lifetime up to 20,000 hours.

Detailed product information
Both HVUX and HVUX Lite use a robust two-step cyclone filtration with antistatic, aluminium-coated polyester filter media (typical lifetime 4,000–8,000 hours under normal conditions) and an integrated automatic cleaning system to maintain performance and reduce maintenance. The series can be customised with ATEX-approved side channel blower, explosion relief panel and burst sensor to meet specific operational and regulatory requirements. Control panels can be adapted for automation functions such as start/stop, alarms and remote monitoring.

What do you get?

• Effective extraction for grinding and brake dust and general workplace cleaning.
• Safe operation in explosive dust atmospheres on the dirty side of the filter.
• High-efficiency two-step cyclone filtration (99.9%) with automatic cleaning.
• Optional ATEX and explosion protection solutions.
• Additional leakage protection via integrated police filter.
• Customisable control and monitoring panel.
• Long-lasting motors and components to reduce downtime.

Technical data (table)
Material: Powder-coated steel
Installation: Indoor
Max. air volume: 939 m³/h
Max. pressure: 30,000 Pa
Voltage: 3×400 V
Current: 11.1–21.6 A
Power: 5.5/6.5 kW – 11/13 kW
Frequency: 50 / 60 Hz
ATEX zone: 21
Dimensions (L×W×H): 800 × 1,812 × 2,060 mm
Weight: 280–310 kg

Characteristics / technical specifications

• Filtration: Two-step cyclone system, 99.9% efficiency
• Filter media: Antistatic, aluminium-coated polyester (4,000–8,000 hours typical life)
• Automatic cleaning: Integrated automatic cleaning system for filters
• Explosion safety: Designed for Zone 21/22 on dirty side; optional ATEX side channel blower, explosion relief panel and burst sensor
• Police filter: Integrated for additional protection against filter leakage
• Control: Customised control panel (ABS for standard, steel for Lite option) with alarms and monitoring
• Motor lifetime: Up to 20,000 hours
• Applications: Extraction of grinding dust, brake dust, vehicle preparation, bodywork and general industrial cleaning
