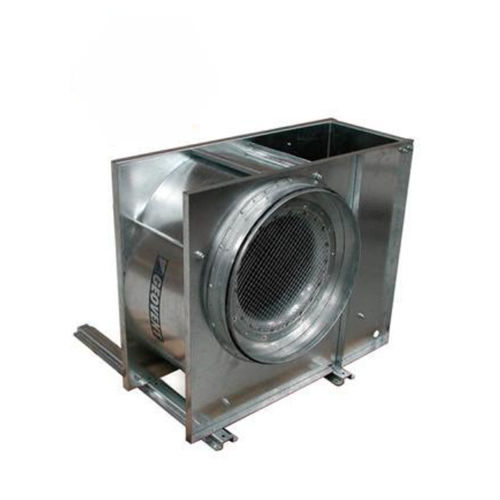

Centrifugal fan LEX

ventilationexplosion-proofextraction

Short description
The LEX/MEX ATEX fans are high-efficiency centrifugal fans designed for safe ventilation in ATEX zones 1 and 2/22. Featuring backward-curved, self-cleaning impellers, they ensure reliable operation in explosive environments. Available in acid-proof stainless steel for highly corrosive environments. Designed for energy-efficient operation and compatible with frequency inverters depending on ATEX zone and motor type for optimal energy efficiency and speed control.

What do you get?

• ATEX-compliant centrifugal fan for safe operation in zones 1 and 2/22.
• High-efficiency, backward-curved impellers for optimal airflow and energy savings.
• Available in acid-proof stainless steel for highly corrosive environments.
• Compatible with frequency inverters for precise speed control.
• Robust, fully galvanised construction with vibration absorbers and outlet bracket.
• Suitable for process and comfort ventilation in explosive atmospheres.
• Designed for seamless integration with Geovent automatics for enhanced performance.

Product information
The LEX/MEX ATEX fans are high-performance centrifugal fans built with backward-curved, self-cleaning impellers that provide optimal airflow while minimising maintenance. The energy-efficient design supports speed control via a frequency inverter depending on the ATEX zone and motor type, reducing power consumption and operational costs. Manufactured according to the ATEX directive 2014/34/EU, the fans include protection against static electricity and sparks in the inlet. The fully galvanised housing features a protective grill, vibration absorbers, and an outlet bracket as standard.

For highly aggressive extractions, the LEX/MEX fans are available in acid-proof stainless steel (AISI 316L), making them resistant to corrosive fumes. Typical applications include chemical processing, battery charging stations, offshore installations such as gas ships and oil rigs. The fans deliver airflow up to 18,000 m³/h, making them suitable for both process and comfort ventilation in hazardous environments.

Technical data
Material: Galvanised steel
Installation: Indoor / Outdoor
Max. air volume: 18,000 m³/h
Max. pressure: 4,500 Pa
Voltage: 3×400 V
Current: 0,9 – 18,5 A
Power: 0,37 – 18,5 kW
Weight: 30 – 200 kg

caractéristiques / spécifications techniques

• Series / Model name: LEX/MEX
• ATEX zones: 1 and 2 / 22
• Impeller: Backward-curved, self-cleaning impellers
• Max airflow: Up to 18,000 m³/h
• Max pressure: 4,500 Pa
• Voltage: 3×400 V
• Power range: 0,37 – 18,5 kW
• Current range: 0,9 – 18,5 A
• Weight range: 30 – 200 kg
• Materials: Galvanised steel; option for acid-proof stainless steel (AISI 316L) for corrosive environments
• Construction: Fully galvanised housing, protective grill, vibration absorbers, outlet bracket
• Safety features: Protection against static electricity and sparks in inlet
• Compatibility: Frequency inverters for speed control; integration with Geovent automatics
• Typical applications: Chemical processing, battery charging stations, gas ships, oil rigs, other explosive atmospheres
