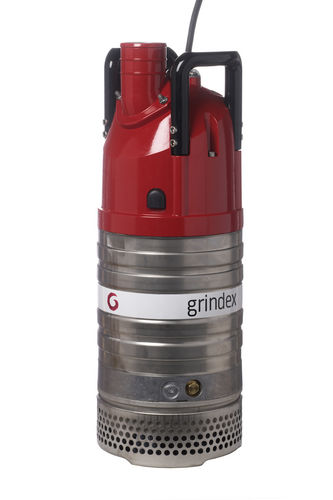

Drainage pump Minetteimpellerfor wastewaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- discharge, drain, drainage
- Voltage
- 220 V
- Protection level
- IP68
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 54 m³/h
(3.96258 ft³/h)- Head
20 m
(65'07" )- Power
Min.: 1.5 kW
(2.04 hp)Max.: 2.2 kW
(2.99 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Output diameter
240 mm
(9.449 in)- Height
676 mm
(26.61 in)- Weight
29 kg
(63.93 lb)
Description
Max submersion 20m
Cable 20m SUBCAB: 1-ph: 3G1.5mm2 3-ph: 4G1.5mm2
Discharge connection Hose, ISO-G or NPT
Limitations ph 5-8
The Minette pump is the next smallest model in the drainage range, but it shares all important features and benefits with the larger models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistence and dramatically reduces performance drop due to long time wear.
Discharge connection - 1-ph: 3" 3-ph: 3"
Shaft speed - 1-ph: 3405rpm 3-ph: 3410rpm
Solids passage - 1-ph: 9mm/0.35inch 3-ph: 9mm/0.35inch
Height - 1-ph: 676mm/26.5inch 3-ph: 676mm/26.5inch
Diameter - 1-ph: 240mm/9.5inch 3-ph: 240mm/9.5inch
Weight - 1-ph: 29kg/64lbs 3-ph: 29kg/64lbs
Catalogs
PUMP HANDBOO 2026
80 Pages
GRINDEX’S GREAT PUMP GUIDE
44 Pages
