Wastewater pump IP68 | Megaelectricsubmersibleimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Technology
- impeller
- Domain
- mining and quarrying
- Applications
- drain
- Material
- cast iron
- Other characteristics
- heavy-duty
- Flow
Max.: 152 l/s
(40.15415 us gal/s)Min.: 0 l/s
(0 us gal/s)- Power
90 kW
(122.37 hp)
Description

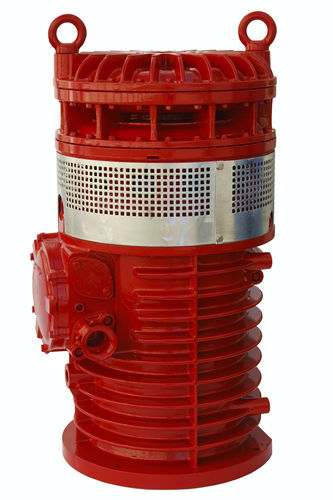

The Mega pump is ideal for operation in deep excavations where very high head pumping is needed, such as in open pit mines as well as in underground mines. Other typical applications include quarries and tunnelling projects.
Mega is designed to handle pH levels from 6 to 13; zinc anodes are available for extra protection. As this pump is made of cast iron, it is also the right choice for heavy-duty applications in salt water. Grindex reliable pumps are designed for long time operation and are easy to install.
Pump types:
Electrical submersible
3-phase
Classification:
Class IP 68
Cable:
SUBCAB
Discharge:
N: 6" SMS/DIN/BS/ANSI
H: 4" SMS/DIN/BS/ANSI
Limitations:
Max submersion depth: 75m
Max liquid temp: 40°C
Max liquid density: 1100 kg/m3
pH of the liquid: 6-13
VIDEO
