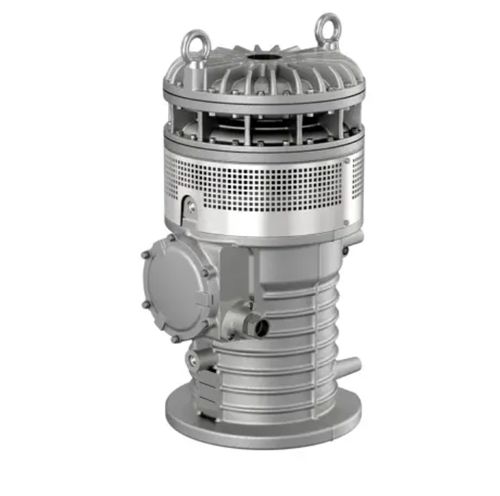

Stainless steel pump Mega Inoximpellerwaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, for the mining industry, for the construction industry
- Applications
- discharge, drainage
- Material
- stainless steel
- Protection level
- IP68
- Other characteristics
- large
- Head
75 m
(246'00" )- Power
90 kW, 95 kW, 133 kW
(122.37 hp, 129.16 hp, 180.83 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Width
700 mm, 1,180 mm
(27.56 in, 46.46 in)- Height
770 mm, 1,250 mm
(30.31 in, 49.21 in)- Weight
925 kg, 1,015 kg
(2,039.28 lb, 2,237.69 lb)
Description
Product Features
Cable: 20m (requires external starter) DOL: 1 x 3x50+2G35/2+S(2x0,5) YD: 2 x 4G25+S(2x0,5) Other options available on request
Discharge connection: H: 4” EN 1092-2 tab. 9 / ASME B 16.5-1996;tab.8 / undrilled N: 6” EN 1092-2 tab. 9 / ASME B 16.5-1996;tab.8 / undrilled
Limitations: ph 2-10
With its impressive allowed pH range, from 2 up to 10, it is hard to find an application that can't be handled by the Inox pumps. All materials in contact with the liquid are made out of AISI 316 stainless steel or better.
