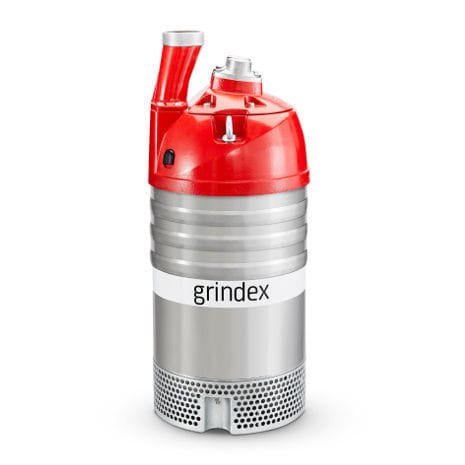

Impeller pump Maxi H-Litefor wastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- discharge, drain, drainage
- Voltage
- 460 V, 230 V
- Protection level
- IP68
- Other characteristics
- large
- Power
29 kW, 32 kW
(39.43 hp, 43.51 hp)- Output diameter
436 mm
(17.165 in)- Height
1,046 mm
(41.18 in)- Weight
210 kg
(462.97 lb)
Description
Product Features
Cable (requires external starter) 20 meters
SUBCAB: 230V DOL: 1x 4G25mm²
230V Y/D: 2x 4G10mm²
400-500V DOL: 1x 4G10mm²
400-500V Y/D: 1x 7G6mm²
Discharge connection Hose: 4" NPT & ISO-G Male: 4"
Limitations ph 5-8
Product code 8107.300; Over the years the Maxi pump has proven to be the ideal pump for heavy duty drainage applications in all kinds of segments. Be it Construction, Mining or Industrial applications, the robust and reliable design combined with the ease-of-maintenance make it the pump of choice for hundreds of customers around the world. The Maxi H-Lite (25kW) is built on the well-proven hydraulics from Grindex and is filling a gap between the Matador (18 kW) and popular Maxi (37kW).
