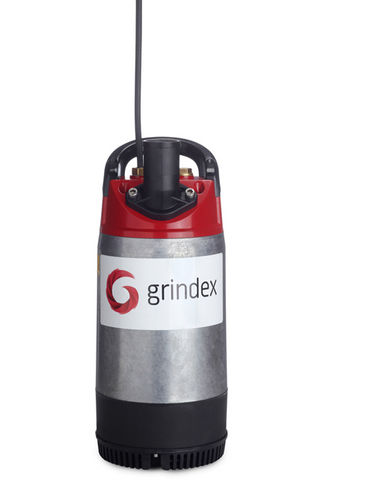

Miniature pump Miniimpellerwaterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- discharge, drain
- Fluid specification
- for abrasive fluids
- Protection level
- IP68
- Other characteristics
- miniature
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 18.72 m³/h
(1.37369 ft³/h)- Head
10 m
(32'09" )- Power
0.45 kW, 0.65 kW
(0.61 hp, 0.88 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Output diameter
188 mm
(7.402 in)- Height
464 mm
(18.27 in)- Weight
13 kg
(28.66 lb)
Description
Discharge connection - 2"
Shaft speed - 3300rpm
Solids passage - 6.2mm/0.2inch
Diaeter - 188mm/7.4inch
Pump type Electrical submersible One-phase
Cable 10m H07RN-F, 3x1mm2
Discharge connection Hose, BSP or NPSM
Limitations ph 5-8
The Mini pump excels in applications where reliability and easy handling are essential. It is built to handle contaminated water, pH 5-8, and water containing relatively abrasive solids up to the size of 5 mm.
