Drainage pump Maxi N / H / L
impellerfor wastewaterelectric

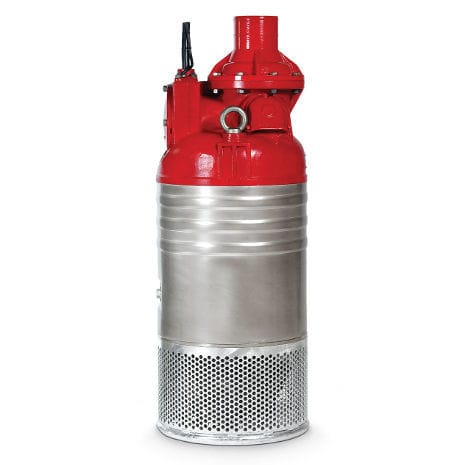

Drainage pump - Maxi N / H / L - Grindex - impeller / for wastewater / electric
Drainage pump - Maxi N / H / L - Grindex - impeller / for wastewater / electric
Add to favorites
Compare this product

Characteristics

Technology
impeller
Fluid
for wastewater
Operation
electric
Priming
submersible
Mobility
stationary, mobile
Domain
industrial, for the mining industry, for the construction industry
Applications
discharge, drainage
Voltage
400 V, 460 V, 230 V
Protection level
IP68
Other characteristics
large
Head

20 m
(65'07" )

Power

42 kW, 43 kW
(57.1 hp, 58.46 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Output diameter

436 mm, 506 mm
(17.165 in, 19.921 in)

Height

1,046 mm, 1,302 mm
(41.18 in, 51.26 in)

Weight

240 kg, 280 kg, 285 kg
(529.11 lb, 617.29 lb, 628.32 lb)

Description

Product Features Cable (requires external starter) 20 meters SUBCAB: 230V DOL: 4G35mm² 230V Y/D: 4G25mm² 400-500V DOL: 4G16mm² 400-500V Y/D: 4G10mm² Discharge connection 4-8´´ hose ISO-G or NPT Limitations ph 5-8 Over the years the Maxi pump has proven to be the ideal pump for heavy duty drainage applications in all kinds of segments. Be it Construction, Mining or Industrial applications, the robust and reliable design combined with the ease-of-maintenance make it the pump of choice for hundreds of customers around the world. The Maxi pump is available in three configurations: Maxi L (Low head) Maxi N (Normal head) Maxi H (High head)
