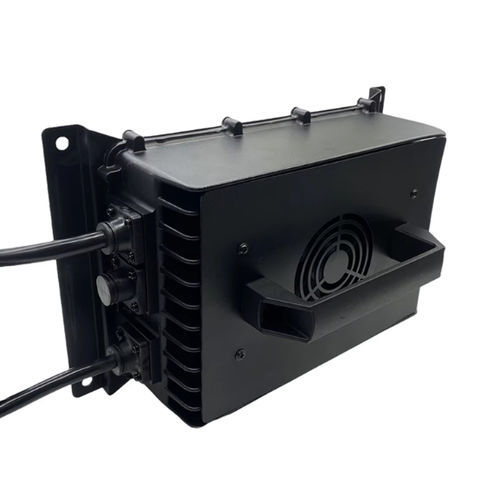

Battery charger for marine applications VT-QA1200B

for electric vehiclesfor forklift trucksfor AGV

Product Overview

• Input voltage: 100-240VAC
• Applicable battery voltage: DC24V / 36V / 48V / 60V / 72V
• Charging Current: 17A / 18A / 25A
• Applicable battery range: 180-240AH / 150-200AH / 120-150AH / 80-120AH / 60-80AH
• Size & Weight: 264.9*184.5*88mm / 3.8kg
• Waterproof level: IP65 / IP67 / IP68
• Warranty: 2-year

Application
This series chargers are designed with a sealed structure. Suitable for flooded lead-acid batteries, sealed lead acid batteries, lithium batteries, Ni-MH batteries, nickel-cadmium batteries, etc. They are used for cycle charging or floating charging of battery packs in electric bumper cars, sightseeing vehicles, patrol vehicles, forklifts, floor scrubbers, AGV, ships and similar equipment.

Protection Functions

• Burnout Protection: If charger temperature exceeds the limit, charging power is reduced. If environment temperature exceeds 65°C, the charger stops charging and switches to standby until temperature drops.
• Protection for Reverse Connection of Batteries: Internal circuit shuts down when batteries are connected in reverse to prevent damage to the charger.
• No-load Protection: No output when batteries are not connected.
• Short Circuit Protection: Internal circuit shuts down when output is short-circuited; charger restarts only after troubleshooting and restart.
• Automatic shutdown when fully charged: Charging stops automatically when the charger determines the battery is fully charged.

Technical Parameters
Model: VT-QA1200B
Shell: Aluminum
AC input: 100-240VAC; 45-65Hz
Dimensions: 264.9*184.5*88mm
Max Efficiency: ≥93.0%
Waterproof: IP67 (also specified IP65/IP68 in overview)
Max input current: 7.5A @ 220VAC
Weight: 3.8kg
Noise: ≤45dB
Operating Temperature: -30℃ ~ 65℃
Storage Temperature: -40℃ ~ 95℃
Available Color: Black / Yellow / other color can be customized
Certification: CE, FCC, ETL
Protection: Burnout Protection; Protection for Reverse Connection of Batteries; No-load Protection; Short Circuit Protection; Automatic shutdown when fully charging

Model Table (selected QA1200B variants)
Model | Rated Voltage for Battery Pack | Max Output Voltage | Max Output Current | CV LeadAcid | CV Li-ion | CV LiFeP04 | Transition/cut-off Current
QA1200B-24V25A | 24V | 34V | 25A | 29.4V | 29.4V | 29.2V | 2.5A
QA1200B-36V25A | 36V | 48V | 25A | 44.1V | 42.0V | 43.8V | 2.0A
QA1200B-48V20A | 48V | 68V | 25A | 58.8V | 54.6V | 58.4V | 2.0A
QA1200B-60V18A | 60V | 85V | 20A | 73.5V | 67.2V | 73.0V | 1.5A
QA1200B-72V15A | 72V | 102V | 17A | 88.2V | 84.0V | 87.6V | 1.5A

Notes
The QA series is available in multiple power ratings and model variants (examples include 450W, 600W, 750W, 1250W, 2000W, 3000W series) with various input/output and current configurations for different battery voltages and capacities.
