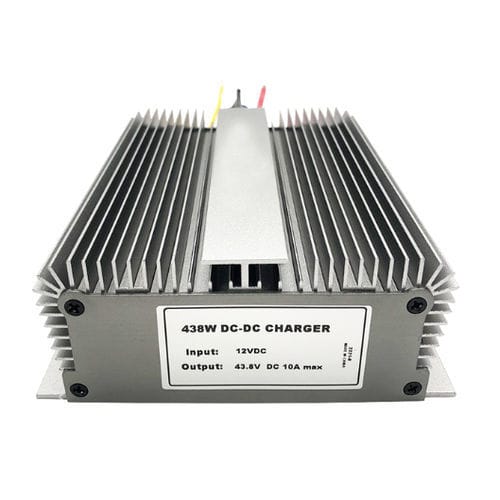

Step-up DC/DC converter regulatednon-isolatedMPPT
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- regulated, non-isolated, step-up, MPPT
- Configuration
- encapsulated
- Applications
- vehicle, for EV charger, for photovoltaic applications
- Other characteristics
- rugged, compact, regulated, with overcurrent protection, battery charger, with overheating protection, high-current, IP68, waterproof
- Input voltage
12 V
- Output voltage
Min.: 43.55 V
Max.: 44.05 V
- Power
438 W, 876 W, 1,314 W
Description
Product overview
Key features
B2B charging applications
MPPT solar charge
Technical specifications
- Step-up DC-DC charger designed to convert 12V input to 43.8V ±0.25V output for battery charging applications.
- Available output currents: 10A, 20A, 30A; corresponding output power: 438W / 876W / 1314W.
- Non-isolated input/output design, compact industrial enclosures with IP68 protection.
- High transfer efficiency up to 95%; robust operation range −20°C to 85°C. Warranty: 2-year.
Key features
- Synchronous rectification technology for high efficiency.
- Low internal resistance capacitor filter to withstand elevated temperatures.
- Organic silicone packaging for environmental resistance.
- Integrated chip protections: over-temperature and over-current protection.
- Mechanical resistance: anti-shock, anti-drop; protection against moisture and dust.
- Waterproof rating IP68; non-isolated topology.
B2B charging applications
- Allows charging a main service battery via the alternator using the starter battery as an input source.
- Can be used to transfer charge between batteries when units are off-board or outside a vehicle.
- When the vehicle is running, the alternator can supply full-power charging to the main battery through this charger.
- Charge control follows standard charging curves by boosting or stepping down to the specified voltage and current.
MPPT solar charge
- Built-in MPPT capability improves solar panel charging efficiency by approximately 10–30% under typical conditions.
- Regulates output by boosting or bucking to deliver the specified current and follow standard charge profiles for the main battery.
- Supports long-term vehicle standby by providing a small trickle charge to the starter battery to ensure reliable starting power.
Technical specifications
- Product name: 12V DC to 43.8V DC Charger
- Input voltage: DC 12V
- Output voltage: DC 43.8V ±0.25V
- Available output currents: 10A / 20A / 30A
- Output power: 438W (10A), 876W (20A), 1314W (30A)
- Dimensions: 10A: 150×130×50 mm; 20A: 220×130×50 mm; 30A: 220×156×65 mm
- Weight: 10A: 1.5 kg; 20A: 2.5 kg; 30A: 3.5 kg
- Transfer efficiency: up to 95%
- Over-temperature protection threshold: 150°C
- Operating temperature range: −20°C to 85°C
- Ingress protection: IP68
- Design: non-isolated input/output
- Warranty: 2-year
