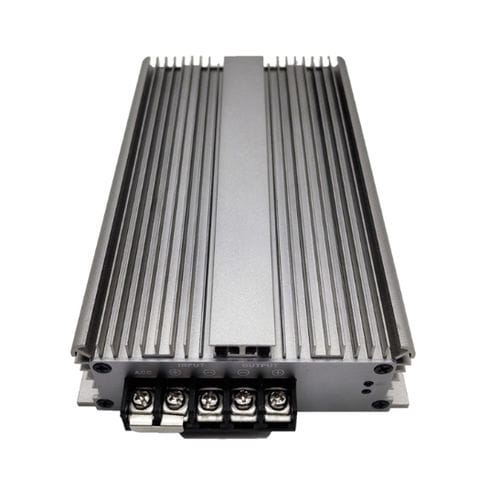

Step-down converter

step-upnon-isolatedencapsulated

Product overview
12V to 14.6V DC-DC charger designed for motorhomes, campers, ships and similar applications. The charger can charge the main battery through the alternator and starter battery, and some models support charging from solar panels. Input Voltage: DC12V. Output Voltage: DC14.6V±0.25V.

Sizes & Weights

• 10A: 118*80*28mm / 0.5KG
• 20A: 180*118*39mm / 0.6KG
• 30A: 150*130*50mm / 1.5KG
• 40A-50A: 220*130*50mm / 2.5KG

Features

• Synchronous rectification technology
• Internal resistance capacitor filter, withstands high temperature
• Organic silicone packaging technology
• Chip smart protection: anti-overheating and overcurrent protection
• Anti-shock, anti-drop, anti-moisture, anti-dust
• High efficiency: 95%
• Non-isolated between input and output
• Waterproof enclosure: IP68

B2B Charge (Battery-to-Battery)

• Charges the main battery through the vehicle alternator and starter battery
• Can be used outside vehicle to let one battery charge another
• When vehicle runs, alternator can charge the main battery at full power through the charger
• Charger boosts or steps down to apply specified voltage/current and follow a standard charging curve

MPPT Solar Charge (if applicable)

• Improves solar panel charging efficiency by 10–30% via maximum power point tracking (MPPT)
• Boosts or steps down to provide the specified charging current and follow the battery charge curve
• Provides a small trickle charge to the starter battery when vehicle is unused for long periods to ensure start capability

Product table
Product Name : 12V DC to 14.6V DC Charger
Size : 118*80*28mm | 180*118*39mm | 150*130*50mm | 220*130*50mm
Output current : 10A | 20A | 30A | 40A | 50A
Output power : 146W | 292W | 438W | 584W | 730W
Weight : 0.5KG | 0.6KG | 1.5KG | 2.5KG
Input voltage : DC12V
Transfer efficiency : 95%
Output voltage : DC14.6V±0.25V
Overheating protection : 150℃
Working temperature : -20℃ - 85℃
Water Proof : IP68

Technical specifications

• Product name: 12V DC to 14.6V DC Charger
• Input voltage: DC12V
• Output voltage: DC14.6V ±0.25V
• Available output currents: 10A, 20A, 30A, 40A, 50A
• Corresponding output power: 146W (10A), 292W (20A), 438W (30A), 584W (40A), 730W (50A)
• Sizes (by current): 10A = 118*80*28mm; 20A = 180*118*39mm; 30A = 150*130*50mm; 40A-50A = 220*130*50mm
• Weight (by current): 10A = 0.5KG; 20A = 0.6KG; 30A = 1.5KG; 40A-50A = 2.5KG
• Efficiency: 95%
• Overheating protection threshold: 150℃
• Working temperature range: -20℃ to 85℃
• Enclosure rating: IP68 (waterproof)
• Topology / features: synchronous rectification, internal resistance capacitor filter, organic silicone packaging, smart chip protection, non-isolated input/output
• Applications: motorhomes, campers, ships, battery-to-battery charging, MPPT solar-assisted charging (some models)
