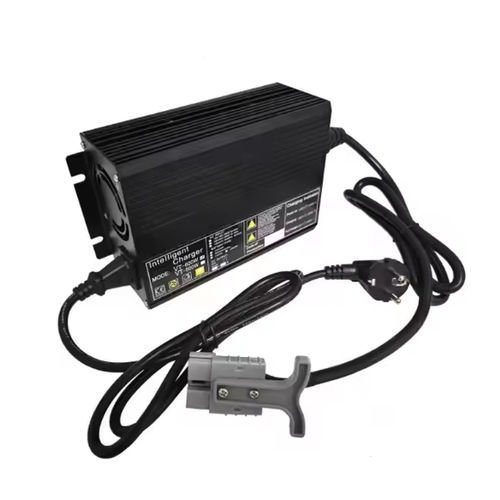

Battery charger for marine applications VT-QB600E
for electric vehiclesfor forklift trucksfor electric tools

Battery charger for marine applications - VT-QB600E - Guangzhou Voita Electronic Technology Co., Ltd. - for electric vehicles / for forklift trucks / for electric tools
Battery charger for marine applications - VT-QB600E - Guangzhou Voita Electronic Technology Co., Ltd. - for electric vehicles / for forklift trucks / for electric tools
Battery charger for marine applications - VT-QB600E - Guangzhou Voita Electronic Technology Co., Ltd. - for electric vehicles / for forklift trucks / for electric tools - image - 2
Battery charger for marine applications - VT-QB600E - Guangzhou Voita Electronic Technology Co., Ltd. - for electric vehicles / for forklift trucks / for electric tools - image - 3
Add to favorites
Compare this product
Go to the Guangzhou Voita Electronic Technology Co., Ltd. website for more information

Characteristics

Applications
for electric vehicles, for marine applications, for forklift trucks, for electric tools
Configuration
desktop
Battery type
Li-ion, lithium iron phosphate, lead-acid, gel, Ni-Cd, Ni-MH
Other characteristics
automatic, universal voltage
Voltage

12 V, 24 V, 36 V, 48 V

Amperage

10 A, 15 A, 20 A, 25 A

Description

Product Overview
This sealed-structure charger series supports flooded lead-acid, sealed/gel lead-acid, Li-ion, LiFePO4, NiMH and NiCd batteries. It is designed for cycle or float charging of battery packs used in ride-on floor scrubbers, mobility scooters, electric wheelchairs, electric motorcycles, electric lawn mowers, push sweepers, power tools, micro forklifts, small vessels and similar industrial/mobile equipment.

Key features
  • Power: 600W (VT-QB600E series)
  • Input voltage: 100–240VAC (technical table: 180–264VAC; 45–65Hz)
  • Output voltages: 12V / 24V / 36V / 48V (variants up to 60V/72V)
  • Charging current options: 10A / 15A / 20A / 25A / 30A
  • Applicable battery capacity: 32–240AH depending on model
  • Protection level: IP45; active fan cooling
  • Efficiency: ≥88%; noise ≤45dB


Technical specifications (summary)
  • Model: VT-QB600E
  • Dimensions: 189*130*72mm; Weight: 1.9kg
  • Max input current: 3.0A @ 220VAC
  • Operating temperature: -30℃ to 65℃; Storage: -40℃ to 95℃
  • Protections: reverse polarity, short circuit, no-load, burnout, automatic shutoff when fully charged
  • Supported chemistries: Flooded lead-acid, Gel/sealed lead-acid, Li-ion, LiFePO4, NiMH, NiCd
  • Warranty: 2 years


Models & variants (selection)
  • QB600B-12V30A / QB600E-12V25A / QB600E-12V30A — 12V models (CV ~14.7V for lead-acid)
  • QB600B-24V20A / QB600E-24V15A / QB600E-24V20A — 24V models (CV ~29.4V)
  • QB600E-36V15A / QB600B-36V15A — 36V models (CV ~44.1V)
  • QB600E-48V10A / QB600B-48V10A — 48V models (CV ~58.8V)


Applications
  • Ride-on floor scrubbers and industrial cleaning machines
  • Mobility scooters, electric wheelchairs and electric motorcycles
  • Electric lawn mowers, push sweepers, micro forklifts and small vessels


Protections & compliance
  • Reverse connection, short-circuit, no-load and burnout protection
  • Automatic shutdown at full charge
  • IP45 splash resistance and active cooling


Ordering & warranty
  • Available in multiple voltage/current configurations — specify model code when ordering
  • Two-year warranty and technical support available
