Battery charger for marine applications CV

for forklift trucksfor AGVdesktop

Short description
Input voltage: 100–240 VAC
Applicable battery voltages: DC 12V / 24V / 36V / 48V / 60V / 72V
Available charging currents: 8A, 10A, 12A, 14A, 15A, 20A, 25A, 30A, 45A
Dimensions & weight (example for 1200W): 280 × 197 × 85 mm / 3.9 kg
Waterproof rating: IP65 / IP67 / IP68 (model dependent)
Warranty: 2 years

Product overview

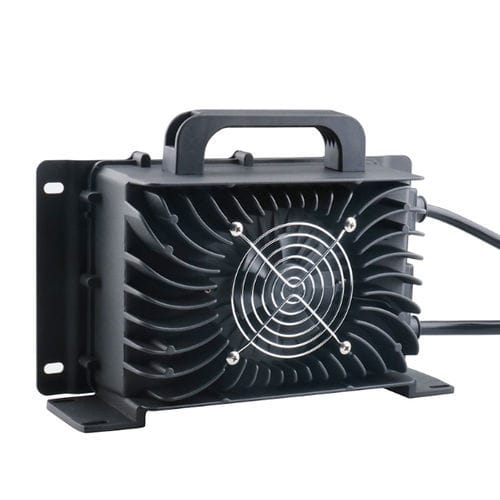

The VT-1200W series are sealed, waterproof battery chargers designed for a wide range of lead‑acid and rechargeable chemistries, including LiFePO4. They support both cycle charging and float charging for battery banks used onboard vessels and in industrial mobile equipment.

Typical applications include marine vessels (boats, yachts, workboats), AGV and material handling, forklifts, floor scrubbers, patrol and sightseeing vehicles, and other battery-powered systems where a sealed, waterproof charger is required.

Protection functions

• Overtemperature / burnout protection: charger reduces load if internal temperature rises; charging stops and enters standby if ambient temperature exceeds 65℃ until temperature drops.
• Reverse connection protection: internal circuitry shuts down if batteries are connected with reversed polarity to prevent damage.
• No‑load protection: no output when batteries are not connected.
• Short‑circuit protection: output shuts down on short circuit; charger restarts only after fault clearance and reset.
• Automatic cutoff when fully charged: charger detects full charge and stops charging automatically.

VT-1200W models (table)
Model | Lead Acid CV | Li‑ion CV | LiFePO4 CV | Current Limitation (A) | Transition/Cut‑off Current - Lead Acid | Transition/Cut‑off Current - Li
VT-1200W-12 | 14.7V | 16.8V | 14.6V | 35 | 7.0 | 1.75
VT-1200W-24 | 29.4V | 29.4V | 29.2V | 30 | 6.0 | 1.50
VT-1200W-36 | 44.1V | 42.0V | 43.8V | 25 | 5.0 | 1.25
VT-1200W-48 | 58.8V | 54.6V | 58.4V | 20 | 3.6 | 0.90
VT-1200W-60 | 73.5V | 67.2V | 73.0V | 15 | 3.0 | 0.75
VT-1200W-72 | 88.2V | 84.0V | 87.6V | 12 | 2.4 | 0.60

Model List and QA series overview
450W QA Series (Waterproof) - Examples: QA450A-12V15A, QA450A-24V12A, QA450A-24V15A, QA450A-36V10A, QA450A-48V06A. Typical dimensions: 183 × 108 × 70 mm; Weight: 1.7 kg; Output voltage examples: 14.7V / 29.4V / 44.1V / 58.8V.

600W QA Series (Waterproof) - Examples: QA600A-12V30A, QA600A-24V15A, QA600A-36V15A, QA600A-48V10A, QA600A-60V08A. Typical dimensions: 199 × 122.5 × 77 mm; Weight: 1.9 kg; Output voltage examples: 14.7V / 29.4V / 44.1V / 58.8V / 73.5V.

750W QA Series (Waterproof) - Examples: QA750A-24V25A, QA750A-36V18A, QA750A-48V15A. Typical dimensions: 195 × 122 × 71 mm; Weight: 1.9 kg; Output voltage examples: 14.7V / 29.4V / 44.1V.

1250W QA Series (Waterproof) - Examples: QA1250A-24V30A, QA1250A-36V25A, QA1250A-48V25A, QA1250A-60V15A, QA1250A-72V12A. Typical dimensions: 231.9 × 136.5 × 76 mm; Weight: 2.8 kg.

2000W QA Series (Waterproof) - Examples: QA2000A-24V40A, QA2000A-24V50A, QA2000A-36V40A, QA2000A-48V30A, QA2000A-60V25A, QA2000A-72V25A. Typical dimensions: 287 × 168 × 89 mm; Weight: 4.4 kg. CAN communication available on some models.

3000W QA Series (Waterproof) - Examples: QA3000A-48V50A, QA3000A-60V35A, QA3000A-72V30A. Typical dimensions: 315 × 199 × 126 mm; Weight: 7 kg. CAN communication available on some models.

Technical specifications

• Input voltage: 100–240 VAC
• Applicable battery voltages: DC 12V / 24V / 36V / 48V / 60V / 72V
• Available charging currents: 8A, 10A, 12A, 14A, 15A, 20A, 25A, 30A, 45A
• Dimensions (example for 1200W): 280 × 197 × 85 mm
• Weight (example for 1200W): 3.9 kg
• Waterproof rating: IP65 / IP67 / IP68 (depending on model)
• Warranty: 2 years
• Supported battery chemistries: Flooded lead‑acid, sealed lead‑acid, Li‑ion, LiFePO4, Ni‑MH, Ni‑Cd
• Protection features: overtemperature, reverse‑connection, no‑load, short‑circuit, automatic cutoff when fully charged
