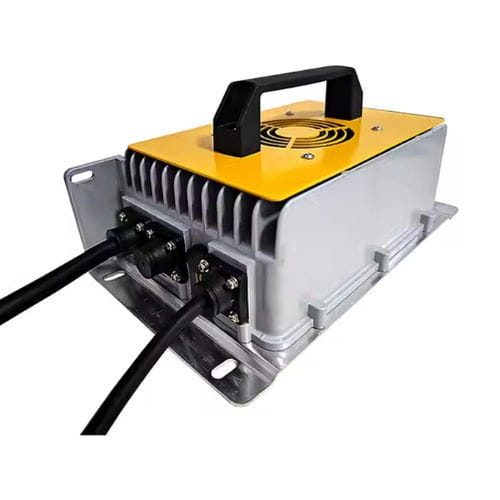

Battery charger for marine applications VT-QA2000A

for electric vehiclesfor forklift trucksfor AGV

Overview
This sealed 2000W charger series is designed for industrial battery systems and supports flooded lead-acid, sealed lead-acid, lithium, Ni-MH and Ni-Cd chemistries. It provides cycle or float charging for battery packs used in electric bumper cars, sightseeing vehicles, patrol vehicles, forklifts, floor scrubbers, AGVs, ships and similar equipment.

Electrical summary

• Input voltage: 100–240VAC (technical table also lists 185–270VAC; 45–65Hz)
• Applicable battery voltages: 24V / 36V / 48V / 60V / 72V
• Charging current options: 25A / 30A / 40A / 50A
• Applicable battery capacity (variant-dependent): 150–400AH
• Size & weight: 287 × 168 × 89 mm / 4.4 kg
• Waterproof rating: IP65 / IP67 / IP68 (typical: IP67)
• Warranty: 2 years

Protection functions

• Over-temperature / burnout protection: output power reduces when internal temperature rises; charging halts if ambient temperature exceeds 65°C until cooled.
• Reverse-connection protection: internal circuitry shuts down on reverse battery connection to prevent damage.
• No-load protection: no output when batteries are disconnected.
• Short-circuit protection: charger shuts down on short circuit and restarts only after fault clearance and manual reset/restart.
• Automatic full-charge stop: charging stops automatically when battery is detected fully charged.

Technical parameters (detailed)

• Model: VT-QA2000A
• Power: 2000W (QA Series)
• Shell material: Aluminium
• AC input / Input voltage: 100–240VAC (short description); 185–270VAC, 45–65Hz (technical table)
• Max efficiency: ≥93.0%
• Waterproof: IP67 (series variants: IP65 / IP67 / IP68)
• Max input current: 11.5A @ 220VAC
• Noise level: ≤45dB
• Operating temperature: -30°C to 65°C
• Storage temperature: -40°C to 95°C
• Available color: Yellow (other colors customizable)
• Certifications: CE, FCC, ETL

Available model variants

• QA2000A-24V40A — 24V, 40A, applicable 240–350AH, dimensions 287×168×89 mm, 4.4kg, output 29.4V
• QA2000A-24V50A — 24V, 50A, applicable 300–400AH, dimensions 287×168×89 mm, 4.4kg, output 29.4V
• QA2000A-36V40A — 36V, 40A, applicable 180–260AH, dimensions 287×168×89 mm, 4.4kg, output 44.1V
• QA2000A-48V30A — 48V, 35A, applicable 180–260AH, dimensions 287×168×89 mm, 4.4kg, output 58.8V
• QA2000A-60V25A — 60V, 30A, applicable 150–240AH, dimensions 287×168×89 mm, 4.4kg, output 73.5V
• QA2000A-72V25A — 72V, 25A, applicable 150–200AH, dimensions 287×168×89 mm, 4.4kg, output 88.2V

Applications
Designed for cycle or float charging of battery packs in electric bumper cars, sightseeing vehicles, patrol vehicles, forklifts, floor scrubbers, automated guided vehicles (AGVs), marine auxiliary systems and comparable industrial/mobile equipment.

Key specifications

• Model: VT-QA2000A — 2000W class charger
• Input: 100–240VAC / 185–270VAC (variant dependent)
• Output voltages: for 24V–72V battery systems
• Charging currents: 25A–50A depending on model
• Protection: over-temperature, reverse connection, no-load, short-circuit, automatic full-charge stop
• IP rating: IP65 / IP67 / IP68 options (standard IP67)
• Certifications: CE, FCC, ETL
• Weight & dimensions: 4.4kg, 287×168×89 mm
• Warranty: 2 years
