Step-down converter
step-upregulatednon-isolated

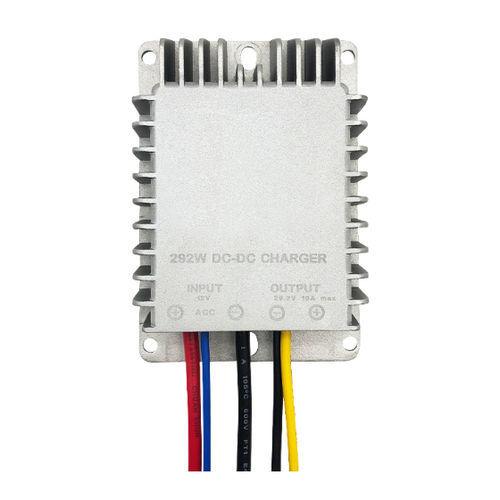

Step-down converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / non-isolated
Step-down converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / non-isolated
Step-down converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / non-isolated - image - 2
Step-down converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / non-isolated - image - 3
Step-down converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / non-isolated - image - 4
Add to favorites
Compare this product
Go to the Guangzhou Voita Electronic Technology Co., Ltd. website for more information

Characteristics

Electrical characteristics
regulated, step-down, non-isolated, step-up, MPPT
Configuration
encapsulated
Applications
vehicle, for EV charger, for photovoltaic applications
Other characteristics
adjustable, high-performance, with overcurrent protection, battery charger, with overheating protection, filtered, IP68, waterproof
Input voltage

Min.: 12 V

Max.: 12 V

Output voltage

Min.: 28.95 V

Max.: 29.45 V

Power

292 W, 584 W, 876 W, 1,168 W

Description

Short description
  • Input Voltage: DC12V
  • Output Voltage: DC29.2V ±0.25V
  • Size & Weight: 10A: 118*80*28mm / 0.5KG; 20A–30A: 220*130*50mm / 2.5KG; 40A: 220*156*65mm / 3.5KG
  • Enclosure Rating: IP68 (waterproof)
  • Warranty: 2-year


Features
  • Synchronous rectification technology for high conversion efficiency
  • Internal resistance capacitor filter for high-temperature endurance
  • Organic silicone encapsulation technology
  • Integrated smart protection: over-temperature and over-current protection
  • Mechanical protections: anti-shock, anti-drop, anti-moisture, anti-dust
  • High efficiency: up to 95%
  • Non-isolated input-output design
  • Waterproof enclosure: IP68


B2B Charge
  • Charges service/main battery via alternator and starter battery
  • Can charge one battery from another when used outside a vehicle
  • When vehicle is running, alternator can charge main battery through the charger at full power
  • Charger can boost or step down output to follow specified charging voltages and currents (standard charge curves)


MPPT Solar Charge
  • MPPT algorithm increases solar panel charging efficiency by 10–30% by tracking maximum power point
  • Charges main battery by boosting or stepping down to maintain standard charging profile
  • Provides small maintenance/trickle charge to starter battery during long standby periods to ensure reliable engine start


Product specifications
  • Product Name: 12V DC to 29.2V DC Charger
  • Sizes: 118*80*28mm | 220*130*50mm | 220*156*65mm
  • Output current options: 10A | 20A | 30A | 40A
  • Output power: 292W (10A) | 584W (20A) | 876W (30A) | 1168W (40A)
  • Weight: 0.5KG | 2.5KG | 3.5KG
  • Input voltage: DC12V
  • Transfer efficiency: 95%
  • Output voltage: DC29.2V ±0.25V
  • Overheating protection threshold: 150℃
  • Operating temperature range: -20℃ to 85℃
  • Ingress protection: IP68


Technical specifications
  • Input Voltage: DC12V
  • Output Voltage: DC29.2V ±0.25V
  • Output Current Options: 10A, 20A, 30A, 40A
  • Output Power Options: 292W (10A), 584W (20A), 876W (30A), 1168W (40A)
  • Size (by current): 10A — 118*80*28mm; 20A–30A — 220*130*50mm; 40A — 220*156*65mm
  • Weight (by current): 10A — 0.5KG; 20A–30A — 2.5KG; 40A — 3.5KG
  • Enclosure / Ingress protection: IP68
  • Transfer efficiency: 95%
  • Overheating protection threshold: 150℃
  • Operating temperature range: -20℃ to 85℃
  • Design: non-isolated input-output
  • Protection features: over-temperature, over-current, anti-shock, anti-drop, anti-moisture, anti-dust
  • Packaging / technology: internal resistance capacitor filter; organic silicone encapsulation; synchronous rectification
