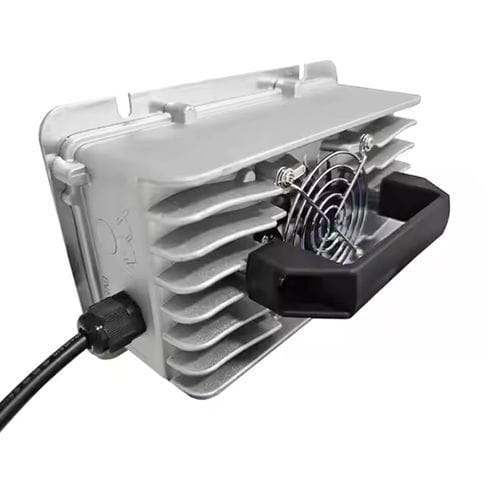

Battery charger for marine applications VT-QA600A

for electric vehiclesfor forklift trucksfor AGV

Product overview
This sealed-structure 600W charger is compatible with flooded lead-acid, sealed lead-acid, lithium batteries (including LiFePO4), Ni-MH and Ni-Cd. It supports cycle and float charging of battery packs used in electric bumper cars, sightseeing vehicles, patrol vehicles, forklifts, floor scrubbers, AGV, vessels and similar industrial/mobile equipment.

Key features

• Input voltage (summary): 100-240VAC; AC input (technical): 185-270VAC, 45-63Hz
• Applicable battery voltages: 12V / 24V / 36V / 48V / 60V
• Selectable charging currents: 8A / 10A / 15A / 20A / 25A (product offers these options)
• Battery capacity ranges by model/current: 40–60AH / 60–80AH / 90–120AH / 120–160AH / 180–240AH
• Dimensions & weight (product): 199×122.5×77mm / 1.9kg; technical table: 193×124×67mm / 1.7kg
• Waterproof rating: IP67 (summary references IP65/IP67/IP68 in some listings)
• Warranty: 2 years

Protection functions

• Over-temperature protection: charger reduces output or stops charging if internal or ambient temperature exceeds safe limits (stops when >65℃ until cooled)
• Reverse-connection protection: internal circuit disables output if batteries are connected with reversed polarity
• No-load protection: no output when batteries are disconnected
• Short-circuit protection: internal shutdown on short; restart only after fault clearance and restart
• Automatic full-charge cutoff: charging stops when battery is detected as fully charged

Technical Parameters (summarized)
Model: VT-QA600A
Rated power: 600W
Shell: Aluminium
AC input: 185-270VAC; 45-63Hz (summary also lists 100-240VAC)
Max efficiency: ≥92.0%
Waterproof: IP67 (some summaries list IP65/IP68)
Max input current: 3.0A @ 220VAC
Dimensions (technical): 193×124×67mm
Weight (technical): 1.7kg (product listing: 1.9kg)
Noise: ≤45dB
Operating temperature: -30℃ to 65℃
Storage temperature: -40℃ to 95℃
Available color: Silver (other colors customizable)
Protection: over-temperature, reverse-connection, no-load, short-circuit, automatic full-charge shutdown

600W QA Series (Waterproof) - model variants
QA600A-12V30A — Input: 180-240V — Battery voltage: 12V — Charging current: 20-30A — Battery range: 180-240AH — Dimensions: 199×122.5×77mm — Weight: 1.9kg — Output voltage: 14.7V
QA600A-24V15A — Input: 180-240V — Battery voltage: 24V — Charging current: 15-20A — Battery range: 120-160AH — Dimensions: 199×122.5×77mm — Weight: 1.9kg — Output voltage: 29.4V
QA600A-36V15A — Input: 180-240V — Battery voltage: 36V — Charging current: 12A — Battery range: 90-120AH — Dimensions: 199×122.5×77mm — Weight: 1.9kg — Output voltage: 44.1V
QA600A-48V10A — Input: 180-240V — Battery voltage: 48V — Charging current: 10A — Battery range: 60-80AH — Dimensions: 199×122.5×77mm — Weight: 1.9kg — Output voltage: 58.8V
QA600A-60V08A — Input: 180-240V — Battery voltage: 60V — Charging current: 8A — Battery range: 40-60AH — Dimensions: 199×122.5×77mm — Weight: 1.9kg — Output voltage: 73.5V

Technical specifications

• Series / Model: VT-QA600A (600W QA Series)
• Input voltage: 100-240VAC (summary) / 185-270VAC; 45-63Hz (technical)
• Selectable charging currents: 8A / 10A / 15A / 20A / 25A
• Applicable battery voltages: 12V / 24V / 36V / 48V / 60V
• Applicable battery capacity ranges: 40-60AH; 60-80AH; 90-120AH; 120-160AH; 180-240AH
• Efficiency: ≥92%
• Protection: over-temperature, reverse-connection, no-load, short-circuit, automatic full-charge cutoff
• Waterproof rating: IP67 (some listings reference IP65 / IP68)
• Dimensions (product / technical): 199×122.5×77mm / 193×124×67mm
• Weight: 1.9kg (product) / 1.7kg (technical)
• Noise: ≤45dB
• Operating temperature range: -30℃ to 65℃
• Storage temperature range: -40℃ to 95℃
• Shell material: Aluminium
• Warranty: 2 years
