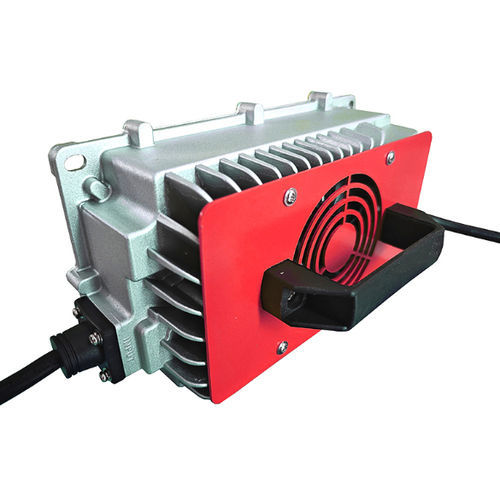

Battery charger for marine applications VT-QA1250A

for electric vehiclesfor forklift trucksfor golf carts

Short description

• Input voltage: 100-240VAC
• Applicable battery voltage: DC24V / 36V / 48V / 60V / 72V
• Charging current: 12A / 15A / 25A / 30A
• Applicable battery range: 60-240AH depending on model
• Size & Weight: 231.9 × 136.5 × 76 mm / 2.8 kg
• Waterproof level: IP65 / IP67 / IP68 (model dependent)
• Warranty: 2 years

Application
Sealed-structure chargers designed for flooded lead-acid, sealed lead-acid, lithium, Ni-MH and Ni-Cd batteries. Intended for cycle and float charging of battery packs in electric bumper cars, sightseeing vehicles, patrol vehicles, forklifts, floor scrubbers, AGV, boats, golf carts and similar electric vehicles.

Protection Function

• Overtemperature protection: charging power reduces if internal temperature rises; charging stops and enters standby if ambient temperature exceeds 65℃ until temperature falls.
• Reverse-connection protection: internal circuit disables output when batteries are connected in reverse.
• No-load protection: no output when batteries are not connected.
• Short-circuit protection: internal shut-down on short circuit; charger restarts only after fault clearance and manual or power-cycle restart.
• Automatic shutdown when fully charged: charger detects full charge and stops charging automatically.

Technical Parameters

• Model: VT-QA1250A
• Power: 1250W
• Shell: Aluminum
• AC input: 185-270VAC, 45-65Hz (product meta may show 100-240VAC)
• Max efficiency: ≥93.0%
• Waterproof: IP67 (series offers IP65/IP67/IP68 options)
• Max input current: 7.5A @ 220VAC
• Noise: ≤45dB
• Dimensions: 231.9 × 136.5 × 76 mm
• Weight: 2.8 kg
• Operating temperature: -30℃ to 65℃
• Storage temperature: -40℃ to 95℃
• Available color: Red (other colors customizable)
• Certifications: CE, FCC, ETL

1250A QA Series - model variants (selected)

• QA1250A-24V30A — Input: 180-240V; Battery voltage: 24V; Charging current: 30A; Applicable battery range: 180-240AH; Output voltage: 29.4V; Dimensions: 231.9 × 136.5 × 76 mm; Weight: 2.8 kg
• QA1250A-36V25A — Input: 180-240V; Battery voltage: 36V; Charging current: 25A; Applicable battery range: 150-200AH; Output voltage: 44.1V; Dimensions: 231.9 × 136.5 × 76 mm; Weight: 2.8 kg
• QA1250A-48V25A — Input: 180-240V; Battery voltage: 48V; Charging current: 25A; Applicable battery range: 120-150AH; Output voltage: 58.8V; Dimensions: 231.9 × 136.5 × 76 mm; Weight: 2.8 kg
• QA1250A-60V15A — Input: 180-240V; Battery voltage: 60V; Charging current: 15A; Applicable battery range: 80-120AH; Output voltage: 73.5V; Dimensions: 231.9 × 136.5 × 76 mm; Weight: 2.8 kg
• QA1250A-72V12A — Input: 180-240V; Battery voltage: 72V; Charging current: 12A; Applicable battery range: 60-80AH; Output voltage: 84.0V; Dimensions: 231.9 × 136.5 × 76 mm; Weight: 2.8 kg

Product content images
Primary product images titled VT-QA1250A illustrate the front, connectors and internal layout for reference.

Specifications

• Model: VT-QA1250A
• Power: 1250W
• AC input range: 100-240VAC (some items list 185-270VAC)
• Output voltages: 24V / 36V / 48V / 60V / 72V
• Charging currents: 12A / 15A / 25A / 30A
• Applicable capacity range: 60-400AH depending on model
• Protection ratings: IP65 / IP67 / IP68 (model dependent)
• Efficiency: ≥93%
• Operating temperature: -30℃ to 65℃
• Storage temperature: -40℃ to 95℃
• Certifications: CE, FCC, ETL
• Dimensions: 231.9 × 136.5 × 76 mm
• Weight: 2.8 kg
• Warranty: 2 years
