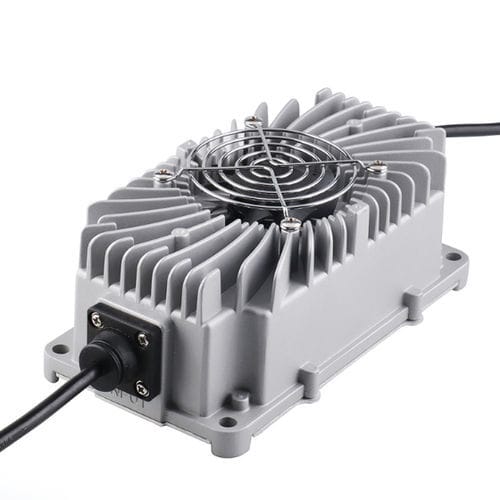

Battery charger for marine applications VT-300W series

for AGVfor forklift trucksvalve-regulated

Short description

• Input voltage: 100-240 VAC
• Applicable battery voltages: DC12V / 24V / 36V / 48V / 60V / 72V
• Charging current options: 3A / 3.5A / 5A / 6A / 10A / 15A
• Dimensions: 182 × 105 × 72 mm
• Weight: 1.64 kg
• Waterproof rating: IP65 / IP67 / IP68
• Warranty: 2 years

Overview
The VT-300W series are sealed-structure battery chargers designed for industrial applications. They support flooded lead-acid, sealed lead-acid, Li-ion, LiFePO4, Ni-MH and Ni-Cd chemistries and can operate in cycle-charge or float-charge modes. Typical applications include electric bumper cars, sightseeing vehicles, patrol vehicles, forklifts, floor scrubbers, AGV systems and small craft.

Protection Function

• Overtemperature protection: charger reduces output or stops charging when internal or ambient temperature exceeds safe limits; charging resumes automatically when temperature returns to range.
• Reverse-connection protection: internal circuitry prevents damage if batteries are connected with reversed polarity.
• No-load protection: no output when batteries are not connected.
• Short-circuit protection: output shuts down on short circuit; charger restarts only after fault clearance and reboot.
• Automatic cut-off: charging stops automatically when the charger detects the battery is fully charged.

VT-300W series - electrical data

• VT-300W-12 — Lead-acid CV: 14.7V; Li-ion CV: 16.8V; LiFePO4 CV: 14.6V; Charging CC: 15A; Current limit: 15A; Cut-off/transition: Lead-acid 3.0A; Li 0.75A
• VT-300W-24 — Lead-acid CV: 29.4V; Li-ion CV: 29.4V; LiFePO4 CV: 29.2V; Charging CC: 8A; Current limit: 8A; Cut-off/transition: Lead-acid 1.6A; Li 0.40A
• VT-300W-36 — Lead-acid CV: 44.1V; Li-ion CV: 42.0V; LiFePO4 CV: 43.8V; Charging CC: 6A; Current limit: 6A; Cut-off/transition: Lead-acid 1.2A; Li 0.30A
• VT-300W-48 — Lead-acid CV: 58.8V; Li-ion CV: 54.6V; LiFePO4 CV: 58.4V; Charging CC: 5A; Current limit: 5A; Cut-off/transition: Lead-acid 1.0A; Li 0.25A
• VT-300W-60 — Lead-acid CV: 73.5V; Li-ion CV: 67.2V; LiFePO4 CV: 73.0V; Charging CC: 3.5A; Current limit: 3.5A; Cut-off/transition: Lead-acid 0.7A; Li 0.175A
• VT-300W-72 — Lead-acid CV: 88.2V; Li-ion CV: 84.0V; LiFePO4 CV: 87.6V; Charging CC: 3A; Current limit: 3A; Cut-off/transition: Lead-acid 0.6A; Li 0.15A

Technical specifications

• Model series: VT-300W (VT-300W-12 / VT-300W-24 / VT-300W-36 / VT-300W-48 / VT-300W-60 / VT-300W-72)
• Input voltage: 100-240 VAC
• Applicable battery voltages: DC12V, 24V, 36V, 48V, 60V, 72V
• Available charging currents: 3A, 3.5A, 5A, 6A, 10A, 15A
• Dimensions (main model): 182 × 105 × 72 mm
• Weight (main model): 1.64 kg
• Waterproof rating options: IP65 / IP67 / IP68
• Protection features: overtemperature, reverse-connection, no-load, short-circuit, automatic cut-off
• Warranty: 2 years
