Rack-mount power supply VT-ADP40030
AC/DCregulatedconstant-current

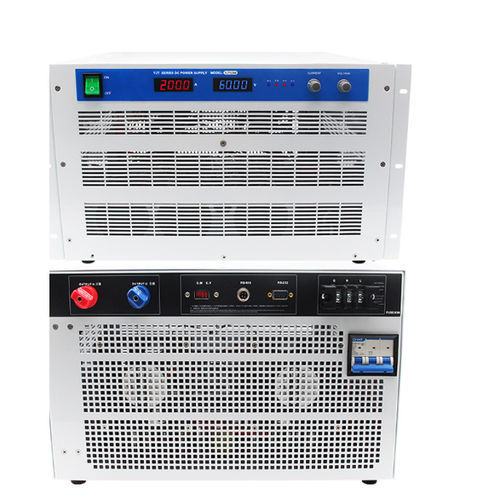

Rack-mount power supply - VT-ADP40030 - Guangzhou Voita Electronic Technology Co., Ltd. - AC/DC / regulated / constant-current
Rack-mount power supply - VT-ADP40030 - Guangzhou Voita Electronic Technology Co., Ltd. - AC/DC / regulated / constant-current
Rack-mount power supply - VT-ADP40030 - Guangzhou Voita Electronic Technology Co., Ltd. - AC/DC / regulated / constant-current - image - 2
Add to favorites
Compare this product
Go to the Guangzhou Voita Electronic Technology Co., Ltd. website for more information

Characteristics

Mounting / format
rack-mount
Type
AC/DC
Output
single-output, regulated, variable-output, constant-current
Network
single-phase, three-phase, two-phase
Protection
with overload protection, with overheating protection, with current limiting
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for automation, for medical applications, for marine applications, for railway vehicles
Other characteristics
programmable, high-power, computer-controlled, fan cooled
Input voltage

110 V, 220 V, 380 V

Output voltage

Max.: 400 V

Min.: 0 V

Current

Max.: 30 A

Min.: 0 A

Power

12,000 W

Description

Short description
  • Input Voltage Range: 1 Phase: AC110V±10%, 50Hz/60Hz; 2 Phase: AC220V±10%, 50Hz/60Hz; 3 Phase: AC380V±10%, 50Hz/60Hz
  • Output voltage: 0-400VDC
  • Output current: 0-30A
  • Size & Weight: 12000W Rack Mount 4U: 483*470*525mm / 49.2kg
  • Warranty: 2-year

Application
  • Adjustable DC regulated power supply widely used in industrial control, electronic power, electroplating, communication, scientific research, instrument, military, medical, ship, railway and other high-tech fields
  • Typical uses: motor testing (electric motor, electric vehicle controller, DC motor test), electric tools (LED test and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification), automobile electronics (high-power DC motor, motor controller, car lighting, cigarette lighter, automobile audio/video), electronic devices (capacitors, resistors, relays, transistors, sensors), display technologies (screens, liquid screens, touchscreens, on-board DVD, mobile phone display), electrochemical applications (electrolysis, electroplating, anodic oxidation, nonferrous metal research)

Customize range
  • Input voltage: 1 phase 110VAC/220VAC or 3 phases 380VAC
  • Output voltage: 0-3000V variable or appointed
  • Output current: 0-2000A variable or appointed
  • Serial port options: RS232, RS485, timing switch
  • Maximum single-unit output example: up to 750KW (configurable)

Technical Parameters (extracted table)
  • Model: VT-ADP40030
  • Input Voltage Range: 1 Phase: AC110V±10%, 50Hz/60Hz; 1 Phase: AC220V±10%, 50Hz/60Hz; 3 Phase: AC380V±10%, 50Hz/60Hz
  • Output voltage: 0-400VDC
  • Output current: 0-30A
  • Power: 12000W
  • Voltage Stabilization: ≤0.3% + 10mV
  • Load Stabilization: ≤0.5% + 30mV
  • Ripples and Noises: ≤0.5% + 10mVrms
  • Voltage Display Accuracy: 4-digit Accuracy: ±1% + 1 word (10% - 100% rating); ranges: 0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V
  • Current Display Accuracy: 4-digit Accuracy: ±1% + 1 word (10% - 100% rating); ranges: 0.000A-9.999A, 0.00A-99.99A, 0-0A-999.9A
  • Insulation resistance: Input-output ≥ 20mΩ; Input-shell ≥ 20mΩ; Output-shell ≥ 80mΩ
  • Insulation strength: Input-output AC1500V, 10mA, 1 minute; Input-shell AC1500V, 10mA, 1 minute; Output-shell AC1500V, 10mA, 1 minute
  • Output OverVoltage Protection: Built-in O.V.P. protection; protection limited value is rated +5%
  • Output Over Load Protection: Overload protection, current limit, constant current output
  • OverTemperature Protection: Built-in O.T.P. protection; protection threshold: 85℃ ± 5% (heat sink temperature)
  • Voltage Setting: 10-turn precision potentiometer
  • Current Setting: 10-turn precision potentiometer
  • Output Polarity: Output Positive (+) / Negative (-) — can be grounded at will
  • Heat Dissipation: Forced fan cooling
  • Work Conditions: Indoor use; Temperature 0℃ ~ 40℃; Humidity 10% ~ 85% RH
  • Storage Conditions: Temperature -20℃ ~ 70℃; Humidity 10% ~ 90% RH
  • Product Dimension: 483*470*525mm

Model list (table rows)
  • 1500W No display — Input: AC110/220/380V — Output max voltage: DC1000V — Output max current: 100A — High flow standard: 100A — Dimensions: 285*152*110mm — Weight: 5.3kg
  • 1500W Portable — Input: AC110/220/380V — Output max voltage: DC2000V — Output max current: 125A — High flow standard: 100A — Dimensions: 150*350*160mm — Weight: 6.7KG
  • 2000W Portable — Input: AC110/220/380V — Output max voltage: DC2000V — Output max current: 125A — High flow standard: 100A — Dimensions: 150*350*160mm — Weight: 6.7KG
  • 1500W/2000W 2U Rack Mount — Input: AC110/220/380V — Output max voltage: DC2000V — Output max current: 150A — High flow standard: 100A — Dimensions: 483*430*90mm — Weight: 12.8KG
  • 3000W Portable — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 250A — High flow standard: 200A — Dimensions: 220*460*170mm — Weight: 12.5KG
  • 3000W Rack Mount 2U — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 300A — High flow standard: 200A — Dimensions: 483*430*90mm — Weight: 15.5KG
  • 4000W Portable — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 300A — High flow standard: 200A — Dimensions: 220*460*170mm — Weight: 13.8KG
  • 5000W Rack Mount 3U — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 500A — High flow standard: 250A — Dimensions: 483*485*135mm — Weight: 21.5KG
  • 6000W — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 500A — High flow standard: 500A — Dimensions: 483*460*180mm — Weight: 22.5KG
  • 6000W Rack Mount 3U (alt listing) — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 500A — High flow standard: 500A — Dimensions: 483*485*135mm — Weight: 23.5KG
  • 8000W Rack Mount 3U — Input: AC110/220/380V — Output max voltage: DC3000V — Output max current: 500A — High flow standard: 500A — Dimensions: 483*485*135mm — Weight: 26.5KG
  • 10KW Rack Mount 3U — Input: AC380V — Output max voltage: DC3000V — Output max current: 800A — High flow standard: 500A — Dimensions: 680*490*135mm — Weight: 36.2KG
  • 12KW Rack Mount 3U — Input: AC380V — Output max voltage: DC3000V — Output max current: 800A — High flow standard: 500A — Dimensions: 680*490*135mm — Weight: 36.8KG
  • 15KW-18KW Rack Mount 8U — Input: AC380V — Output max voltage: DC3000V — Output max current: 1200A — High flow standard: 500A — Dimensions: 740*530*480mm (including terminals and casters) — Weight: 72KG
  • 20KW-25KW Rack Mount 8U — Input: AC380V — Output max voltage: DC3000V — Output max current: 1200A — High flow standard: 500A — Dimensions: 740*530*480mm (including terminals and casters) — Weight: 81KG
  • 25KW-30KW Rack Mount 16U — Input: AC380V — Output max voltage: DC3000V — Dimensions: 785*730*520mm — Weight: 140KG
  • 30KW-40KW Rack Mount 16U — Input: AC380V — Output max voltage: DC3000V — Dimensions: 785*730*520mm — Weight: 170KG
  • 40KW-50KW Rack Mount 16U — Input: AC380V — Output max voltage: DC3000V — Dimensions: 785*730*520mm — Weight: 190KG

Caractéristiques / Spécifications techniques
  • Product name: 12KW Rack Mount Adjustable AC to DC Power Supply 400V 30A with Electronic Protection
  • Commercial model: VT-ADP40030
  • Rated power: 12000W
  • Input: single-phase or three-phase options as specified above
  • Output range: 0-400VDC, 0-30A (model-specific)
  • Dimensions: 483*470*525mm
  • Weight: 49.2kg
  • Protection features: OVP, OLP (current limit / constant current), OTP (85℃ ±5% heat sink)
  • Display & control: 4-digit voltage/current display; 10-turn precision potentiometers for voltage and current; optional analog and digital remote control (0-5V / 0-10V / 4-20mA / RS232 / RS485) as listed in the table
  • Cooling: forced fan cooling
  • Operating environment: indoor, 0℃~40℃, 10%~85% RH
  • Storage environment: -20℃~70℃, 10%~90% RH
