Tabletop power supply VT-S series

AC/DCregulatedsingle-output

Description Switch Mode Power Supply (SMPS) is a high-frequency power conversion device used to convert input voltage to the voltage or current required by the application via different circuit topologies. This VT-S family provides 12V outputs across multiple power levels and includes a charging function on applicable models.

Application

• Industrial automation control
• Military equipment
• Scientific research equipment
• LED lighting
• Industrial control equipment
• Communication equipment
• Power equipment and instrumentation
• Medical equipment
• Semiconductor refrigeration and heating
• Air purifiers, electronic refrigerators, LCD displays
• Audio-visual products, security monitoring, LED strips, computer enclosures, digital products and instruments

Summary (short description) Input Voltage: 100V–240VAC
Output Voltage: 12VDC
Size & Weight examples: VT-S-12-12 70*40*30mm / 0.058kg; VT-S-36-12 85*58*33mm / 0.12kg; VT-S-60-12 110*78*36mm / 0.18kg; VT-S-120-12/VT-S-150-12 129*99*40mm / 0.28kg; VT-S-180-12 199*98*42mm / 0.44kg
Warranty: 2-year

Common technical parameters (applies across models/series) Input Voltage: 100V–240VAC
Output voltage adjustment range: ±10%
Frequency: 47–63Hz
Efficiency: 87%
Over-voltage protection: Yes
Over-load protection: Yes
Short-circuit protection: Yes
Humidity: 20%–90% RH
Ripple: 120 mVp-p
Operating temperature: -40℃ to 65℃

12V series (12W-180W) - model data Model: VT-S-12-12 — Output Power: 12W — Output Current: 1A — Dimension: 70*40*30mm — Weight: 0.058kg

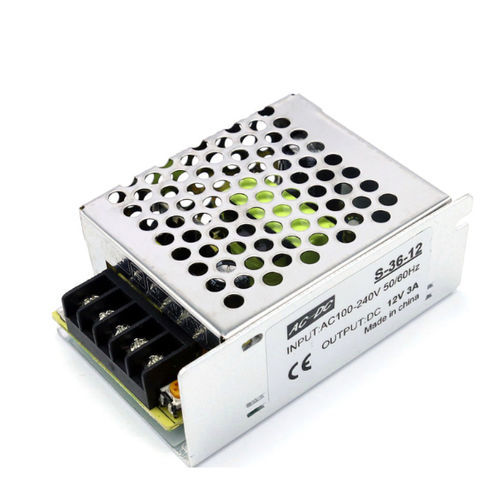

Model: VT-S-36-12 — Output Power: 36W — Output Current: 3A — Dimension: 85*58*33mm — Weight: 0.12kg
Model: VT-S-60-12 — Output Power: 60W — Output Current: 5A — Dimension: 110*78*36mm — Weight: 0.18kg
Model: VT-S-120-12 — Output Power: 120W — Output Current: 10A — Dimension: 129*99*40mm — Weight: 0.28kg
Model: VT-S-150-12 — Output Power: 150W — Output Current: 12.5A — Dimension: 129*99*40mm — Weight: 0.28kg
Model: VT-S-180-12 — Output Power: 180W — Output Current: 15A — Dimension: 199*98*42mm — Weight: 0.44kg

12V series (200W-1000W) - model data Model: VT-S-240-12 — Output Power: 240W — Output Current: 20A — Dimension: 200*110*50mm — Weight: 0.6kg
Model: VT-S-360-12 — Output Power: 360W — Output Current: 30A — Dimension: 215*113*50mm — Weight: 0.73kg
Model: VT-S-480-12 — Output Power: 480W — Output Current: 40A — Dimension: 215*113*50mm — Weight: 0.73kg
Model: VT-S-600-12 — Output Power: 600W — Output Current: 50A — Dimension: 242*124*65mm — Weight: 1.2kg
Model: VT-S-720-12 — Output Power: 720W — Output Current: 60A — Dimension: 242*124*65mm — Weight: 1.2kg
Model: VT-S-1000-12 — Output Power: 1000W — Output Current: 83A — Dimension: 246*133*70mm — Weight: 1.2kg

Technical characteristics / specifications

• Brand: VOITA
• Input Voltage: 100V–240VAC
• Output Voltage: 12VDC (for the 12V series)
• Output voltage adjustment range: ±10%
• Output Power range (12V series): 12W–1000W depending on model
• Output Current range (12V series): 1A–83A depending on model
• Frequency: 47–63Hz
• Efficiency: 87%
• Protections: Over-voltage, Over-load, Short-circuit
• Humidity: 20%–90% RH
• Ripple: 120 mVp-p
• Operating temperature: -40℃ to 65℃
• Dimensions & weights: see model-specific entries above
• Warranty: 2-year
