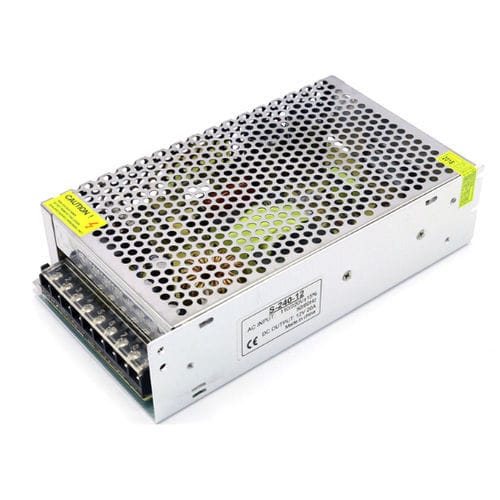

Tabletop power supply VT-S series

AC/DCregulatedsingle-output

Product overview
Switch Power Supply (SMPS) for industrial 12V DC high-power applications. The VOITA VT-S 12V high-power series offers models from 240W to 1000W (examples VT-S-240-12 to VT-S-1000-12) with universal 100–240VAC input and integrated protection functions.

Applications

• Industrial automation and control
• LED lighting and signage systems
• Communication and networking equipment
• Instrumentation and test equipment
• Power modules for medical and laboratory devices
• Semiconductor cooling/heating and other industrial systems

Key features

• Input voltage: 100–240VAC (47–63Hz)
• Output voltage: 12VDC (adjustable ±10%)
• Output power range (12V high-power): 200–1000W (other series 10W–1500W)
• Typical efficiency: ~87%
• Protections: over-voltage, over-load, short-circuit
• Ripple: ~120mVp-p
• Operating humidity: 20%–90% RH; temperature: -40℃ to 65℃

Available models (examples)

• VT-S-240-12 — 240W / 20A
• VT-S-360-12 — 360W / 30A
• VT-S-480-12 — 480W / 40A
• VT-S-600-12 — 600W / 50A
• VT-S-720-12 — 720W / 60A
• VT-S-1000-12 — 1000W / 83A

Technical specifications

• Brand: VOITA
• Series: VT-S
• Input voltage: 100V–240VAC
• Output voltages available: 5V, 12V, 24V, 36V, 48V depending on model
• Output voltage adjustment range: ±10%
• Frequency: 47–63Hz
• Efficiency: ~87%
• Protections: over-voltage, over-load, short-circuit
• Ripple: 120mVp-p
• Operating temperature: -40℃ to 65℃
• Humidity: 20%–90% RH
• Typical dimensions and weights vary by model (examples: VT-S-240-12 = 200*110*50mm / 0.6kg; VT-S-1000-12 = 242*124*65mm / 1.2kg)
