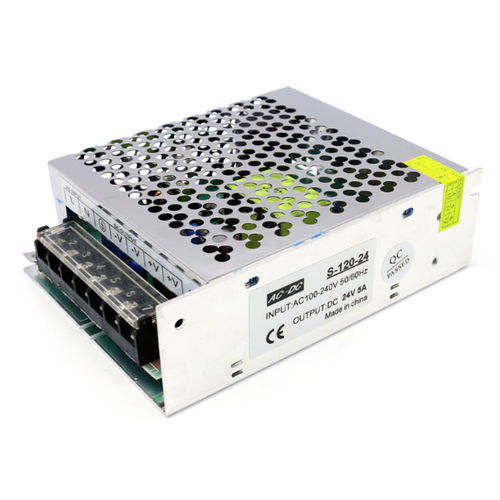

AC/DC power supply VT-S series

regulatedsingle-outputswitching

Overview
Switching power supplies (SMPS) of the VOITA VT-S series convert 100–240VAC input to regulated DC outputs. The VT-S-24 sub-series provides 24V DC outputs across multiple power classes (24W–360W) and is suitable for LED strips and a wide range of industrial applications.

Applications

• LED lighting and LED strip installations
• Industrial automation and control equipment
• Communication and network equipment
• Instrumentation, measurement and test systems
• Power electronics, enclosures and OEM integrations
• Security and monitoring systems

Models & sizes (selection shown on page)

• VT-S-24-24 — 85×58×33mm / 0.09kg (24W)
• VT-S-72-24 — 110×78×36mm / 0.18kg (72W)
• VT-S-120-24 — 129×99×40mm / 0.28kg (120W)
• VT-S-240-24 — 200×110×50mm / 0.6kg (240W)
• VT-S-360-24 — 215×113×50mm / 0.73kg (360W)

Series overview

• 5V series: VT-S-10–60 models, 5VDC, 10–400W classes, output current up to 80A, protections: OVP, OLP, SCP; efficiency ~87%
• 12V series: VT-S-12–1000 models, 12VDC, 12–1000W, output current up to 83A; protections and working range as below
• 24V series: VT-S-24–1500 models, 24VDC, 24–1500W (24–360W shown), output current up to 62.5A
• 36V series: VT-S-360–1500, 36VDC, 360–1500W
• 48V series: VT-S-150–1500, 48VDC, 150–1500W

Technical specifications

• Brand: VOITA
• Input voltage: 100–240VAC, 47–63Hz
• Output voltages available: 5V / 12V / 24V / 36V / 48V DC
• Output voltage adjustment: ±10%
• Efficiency: ≈87%
• Ripple: 120mVp-p (typ.)
• Protections: over-voltage, over-load, short-circuit
• Operating temperature: -40°C to 65°C
• Humidity: 20%–90% RH
• Typical dimensions: from 70×40×30mm to 246×133×70mm depending on model
• Weight range: ≈0.009kg to ≈1.8kg
• Warranty: 2 years

Warranty & ordering
Standard warranty 2 years. Contact the supplier for custom configurations, higher-power assemblies or technical datasheets.
