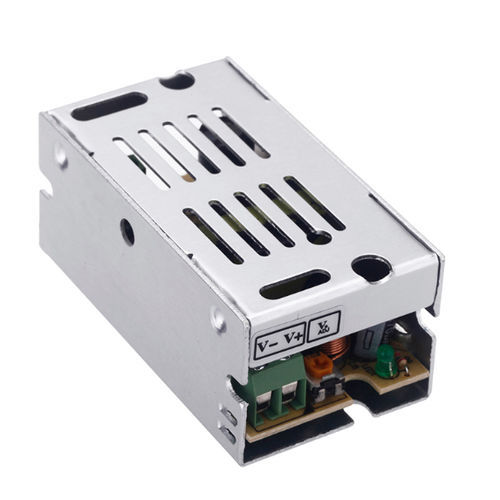

Tabletop power supply VT-S series

AC/DCregulatedsingle-output

Overview
Switching power supply (SMPS) designed to convert 100–240VAC input into a regulated 5VDC output. Offered as the VOITA VT-S 5V series covering compact industrial models with output power from 10W to 60W (VT-S-10-5 to VT-S-60-5).

Application

• Industrial automation control
• Military equipment
• Scientific research equipment
• LED lighting
• Industrial control equipment
• Communication equipment
• Power equipment
• Instrumentation
• Medical equipment
• Semiconductor refrigeration and heating
• Air purifiers and electronic refrigerators
• Liquid crystal displays (LCD)
• Audio-visual products
• Security monitoring
• LED light strips
• Computer cases, digital products and instruments

Warranty
2-year

Size & Weight (from short description)
VT-S-10-5: 270*40*30mm / 0.06kg
VT-S-15-5 / VT-S-25-5: 85*58*33mm / 0.12kg
VT-S-40-5 / VT-S-50-5: 110*78*36mm / 0.18kg
VT-S-60-5: 129*99*40mm / 0.28kg

5V series (10W-60W) — Summary table
Model Name: VT-S-10-5 | VT-S-15-5 | VT-S-25-5 | VT-S-40-5 | VT-S-50-5 | VT-S-60-5
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 5VDC
Output voltage adjustment range: ±10%
Output Current: 2A | 3A | 5A | 8A | 10A | 12A
Output Power: 10W | 15W | 25W | 40W | 50W | 60W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: −40℃~65℃
Short circuit protection: Yes
Dimension (examples / mapped): VT-S-10-5: 70*40*30mm (also listed as 270*40*30mm in short description) | VT-S-15-5 / VT-S-25-5: 85*58*33mm | VT-S-40-5 / VT-S-50-5: 110*78*36mm | VT-S-60-5: 129*99*40mm
Weight (examples / mapped): VT-S-10-5: 0.06kg | VT-S-15-5 / VT-S-25-5: 0.12kg | VT-S-40-5 / VT-S-50-5: 0.18kg | VT-S-60-5: 0.28kg

Other series present on page (overview)
The page also lists additional VOITA series with various output voltages and power ranges (examples: 5V 100W–400W, 12V 12W–1000W ranges, 24V up to 1500W, 36V up to 1500W, 48V up to 1500W). Core parameters are consistent: 100V–240VAC input, ±10% output adjustment, 47~63Hz, ~87% efficiency, common protections and environmental ranges.

Technical specifications

• Brand: VOITA
• Input Voltage: 100V-240VAC
• Output Voltage (this page focus): 5VDC
• Output voltage adjustment range: ±10%
• Output Current (5V series 10W-60W): VT-S-10-5: 2A; VT-S-15-5: 3A; VT-S-25-5: 5A; VT-S-40-5: 8A; VT-S-50-5: 10A; VT-S-60-5: 12A
• Output Power (5V series): 10W / 15W / 25W / 40W / 50W / 60W
• Frequency: 47~63HZ
• Efficiency: 87%
• Over voltage protection: Yes
• Over Load protection: Yes
• Short circuit protection: Yes
• Humidity range: 20% - 90% RH
• Ripple: 120mVp-p
• Working temperature: −40℃ to 65℃
• Typical Dimensions & Weights (examples): VT-S-10-5: 70*40*30mm (short descr. also shows 270*40*30mm) / 0.06kg; VT-S-15-5 / VT-S-25-5: 85*58*33mm / 0.12kg; VT-S-40-5 / VT-S-50-5: 110*78*36mm / 0.18kg; VT-S-60-5: 129*99*40mm / 0.28kg
