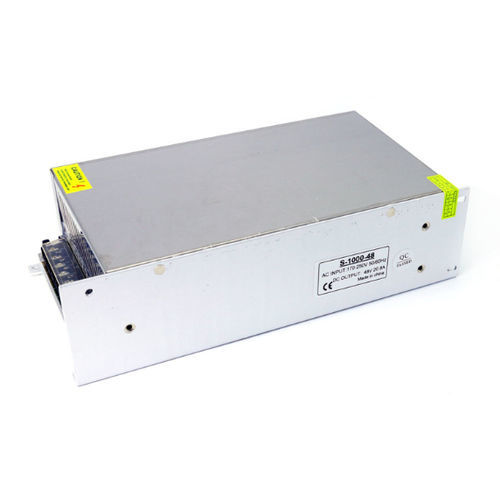

Benchtop power supply VT-S series

AC/DCregulatedsingle-output

Product overview
The VOITA VT-S 48V series is an industrial switching power supply family providing 48VDC outputs across multiple power levels (examples: VT-S-600-48 to VT-S-1500-48). Input range: 100–240VAC. Typical efficiency: 87%. Designed for industrial applications requiring regulated 48V power and built-in protection functions.

Applications

• Industrial automation control
• Military equipment
• Scientific research equipment
• LED lighting and LED strips
• Industrial control equipment
• Communication equipment
• Power equipment and instrumentation
• Medical equipment
• Semiconductor refrigeration and heating
• Air purifiers, electronic refrigerators, LCDs, audio-visual products, security monitoring, computer systems and digital instruments

Key specifications
Input Voltage: 100V–240VAC
Output Voltage: 48VDC (VT-S 48V series; other series available: 5V, 12V, 24V, 36V)
Output Power (48V series examples): 600W, 720W, 800W, 1000W, 1500W
Output Current (examples): 12.5A, 15A, 16.7A, 20.8A, 31.3A (model dependent)
Frequency: 47–63Hz
Efficiency: ~87%
Ripple: 120mVp-p
Protections: over-voltage, over-load, short-circuit
Operating humidity: 20%–90%RH
Working temperature: -40°C to 65°C
Warranty: 2-year
Dimensions & weight (examples): VT-S-600-48 215×113×50mm / 0.8kg; VT-S-720/800/1000-48 242×124×65mm / 1.2kg; VT-S-1500-48 246×133×70mm / 1.6kg

Series overview

• 5V series (10W–60W): VT-S-10-5 … VT-S-60-5 — Output 5VDC, output power 10–60W, various dimensions and currents
• 5V series (100W–400W): VT-S-100-5 … VT-S-400-80 — Output 5VDC, output power 100–400W
• 12V series (12W–180W): VT-S-12-12 … VT-S-180-12 — Output 12VDC, output power 12–180W
• 12V series (200W–1000W): VT-S-240-12 … VT-S-1000-12 — Output 12VDC, up to 1000W
• 24V series (24W–360W): VT-S-24-24 … VT-S-360-24 — Output 24VDC, output power 24–360W
• 24V series (480W–1500W): VT-S-480-24 … VT-S-1500-24 — Output 24VDC, up to 1500W
• 36V series (360W–1500W): VT-S-360-36 … VT-S-1500-36 — Output 36VDC, up to 1500W
• 48V series (150W–500W): VT-S-150-48 … VT-S-500-48 — Output 48VDC, 150–500W
• 48V series (600W–1500W): VT-S-600-48 … VT-S-1500-48 — Output 48VDC, 600–1500W

Environmental and protection details
All listed models include over-voltage, over-load and short-circuit protection. Typical ripple 120mVp-p. Operating humidity 20%–90%RH. Operating temperature range -40°C to 65°C. Efficiency typically 87% across series.

Ordering and support
For datasheets, detailed electrical diagrams, certification information or custom configurations, contact the supplier or VOITA representative. Specify model number (e.g. VT-S-600-48) and required accessories when requesting a quote. Warranty: 2-year.
