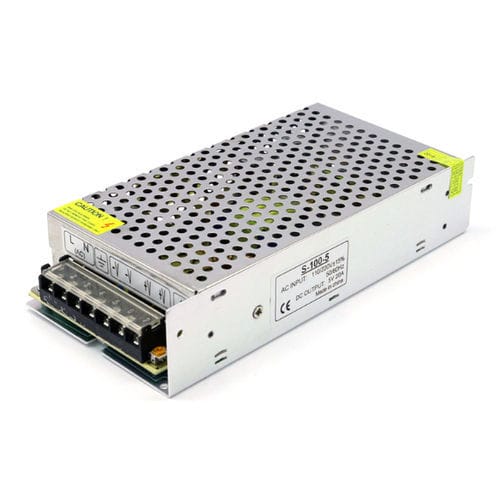

AC/DC power supply 5V series

regulatedsingle-outputswitching

Short Description
Input Voltage: 100V-240VAC
Output Voltage: 5VDC
Size & Weight:
VT-S-100-5 199*98*42mm / 0.45kg
VT-S-150-30 / VT-S-200-40 200*110*50mm / 0.57kg
VT-S-300-60 / VT-S-350-70 215*113*50mm / 0.74kg
VT-S-400-80 215*115*30mm / 0.78kg
Warranty: 2-year

Description
The VOITA VT-S 5V series are switching power supplies (SMPS) designed for reliable DC power delivery in industrial and commercial applications. These units convert universal AC input (100–240VAC) to regulated 5VDC outputs across a broad power range, with built-in protections and operation over a wide temperature and humidity range.

Application

• Industrial automation and control systems
• LED lighting drivers and LED strips
• Communication and network equipment
• Instrumentation and test equipment
• Medical devices (non-critical applications)
• Semiconductor cooling/heating systems and power modules
• Displays, audio-visual equipment and computer peripherals
• Security monitoring and access control systems

5V series (10W-60W)
Model Name | VT-S-10-5 | VT-S-15-5 | VT-S-25-5 | VT-S-40-5 | VT-S-50-5 | VT-S-60-5
Brand | VOITA
Input Voltage | 100V-240VAC
Output Voltage | 5VDC
Output voltage adjustment range | ±10%
Output Current | 2A | 3A | 5A | 8A | 10A | 12A
Output Power | 10W | 15W | 25W | 40W | 50W | 60W
Frequency | 47–63HZ
Efficiency | 87%
Over voltage protection | Yes
Over Load protection | Yes
Humidity | 20%–90%RH
Ripple | 120mVp-p
Working temperature | -40℃~65℃
Short circuit protection | Yes
Dimension | 70*40*30mm | 85*58*33mm | 110*78*36mm | 129*99*40mm
Weight | 0.06kg | 0.12kg | 0.18kg | 0.28kg

5V series (100W-400W)
Product Name | VT-S-100-5 | VT-S-150-30 | VT-S-200-40 | VT-S-300-60 | VT-S-350-70 | VT-S-400-80
Brand | VOITA
Input Voltage | 100V-240VAC
Output Voltage | 5VDC
Output voltage adjustment range | ±10%
Output Current | 20A | 30A | 40A | 60A | 70A | 80A
Output Power | 100W | 150W | 200W | 300W | 350W | 400W
Frequency | 47–63HZ
Efficiency | 87%
Over voltage protection | Yes
Over Load protection | Yes
Humidity | 20%–90%RH
Ripple | 120mVp-p
Working temperature | -40℃~65℃
Short circuit protection | Yes
Dimension | 199*98*42mm | 200*110*50mm | 215*113*50mm | 215*115*30mm
Weight | 0.45kg | 0.57kg | 0.74kg | 0.78kg

Technical specifications

• Brand: VOITA
• Input Voltage: 100V-240VAC
• Output Voltage (5V series): 5VDC
• Output voltage adjustment range: ±10%
• Output current ranges: 2A–12A (10W–60W models); 20A–80A (100W–400W models)
• Output power ranges: 10W–60W and 100W–400W depending on model
• Frequency: 47–63HZ
• Efficiency: 87%
• Protections: Over voltage, Over load, Short circuit
• Ripple: 120mVp-p
• Humidity: 20%–90% RH
• Operating temperature: −40℃ to 65℃
• Dimensions and weights: specified per model above
• Warranty: 2-year
