AC/DC power supply VT-S series
regulatedvariable-outputswitching

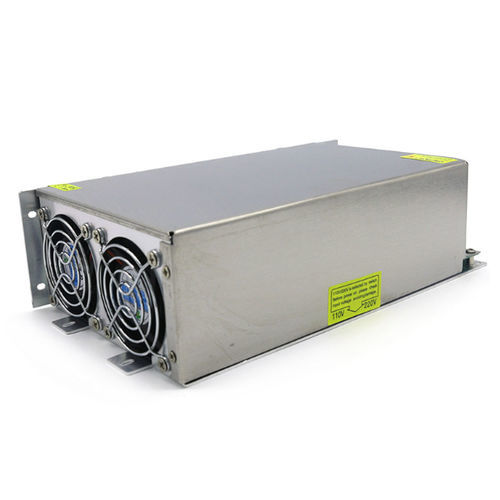

AC/DC power supply - VT-S series - Guangzhou Voita Electronic Technology Co., Ltd. - regulated / variable-output / switching
AC/DC power supply - VT-S series - Guangzhou Voita Electronic Technology Co., Ltd. - regulated / variable-output / switching
AC/DC power supply - VT-S series - Guangzhou Voita Electronic Technology Co., Ltd. - regulated / variable-output / switching - image - 2
AC/DC power supply - VT-S series - Guangzhou Voita Electronic Technology Co., Ltd. - regulated / variable-output / switching - image - 3
Add to favorites
Compare this product
Go to the Guangzhou Voita Electronic Technology Co., Ltd. website for more information

Characteristics

Type
AC/DC
Output
regulated, variable-output
Technology
switching
Network
single-phase
Protection
with short-circuit protection, with overload protection
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for automation, for medical applications, for LED lighting, for PC, for CCTV cameras
Other characteristics
compact
Input voltage

Min.: 100 V

Max.: 240 V

Output voltage

24 V

Current

Min.: 2 A

Max.: 12 A

Power

Min.: 480 W

Max.: 1,500 W

Output frequency

Min.: 47 Hz

Max.: 63 Hz

Description

Description
Compact switching mode power supply (SMPS) converting 100-240VAC mains to DC outputs with adjustable voltage and current depending on model. Available across multiple series with power range from 10W to 1500W. Designed for continuous industrial use with standard electrical protections.

Applications
  • Industrial automation control
  • Military equipment
  • Scientific research equipment
  • LED lighting
  • Industrial control equipment
  • Communication equipment
  • Power equipment
  • Instrumentation
  • Medical equipment
  • Semiconductor refrigeration and heating
  • Air purifiers
  • Electronic refrigerators
  • Liquid crystal displays
  • Audio-visual products
  • Security monitoring
  • LED light strips
  • Computer cases and digital instruments


Key specifications (examples)
Input voltage: 100V-240VAC
Output voltage: 24VDC (other voltages available per model)
Output power: 480W-1500W (models VT-S-480-24 to VT-S-1500-24)
Output current: 20A-62.5A (depending on model)
Voltage adjustment range: ±10%
Frequency: 47-63Hz
Efficiency: ~87%
Protections: over-voltage, over-load, short-circuit
Ripple: ~120 mVp-p
Operating temperature: -40℃ to 65℃
Typical dimensions: 215x113x50mm; 242x124x65mm; 246x133x70mm
Typical weight: 0.8kg; 1.2kg; 1.6kg
Warranty: 2 years

Series overview (selected)
  • 5V series: VT-S-10-5 … VT-S-400-80 — power 10W–400W
  • 12V series: VT-S-12-12 … VT-S-1000-12 — power 12W–1000W
  • 24V series: VT-S-24-24 … VT-S-1500-24 — power 24W–1500W
  • 36V series: VT-S-360-36 … VT-S-1500-36 — power 360W–1500W
  • 48V series: VT-S-150-48 … VT-S-1500-48 — power 150W–1500W


Technical specifications
  • Brand: VOITA
  • Input voltage range: 100V-240VAC
  • Output voltages available: 5V, 12V, 24V, 36V, 48V (model dependent)
  • Output voltage adjustment range: ±10%
  • Frequency: 47-63Hz
  • Efficiency: ~87%
  • Protections: over-voltage protection, over-load protection, short-circuit protection
  • Operating humidity: 20% - 90% RH
  • Ripple: ~120 mVp-p
  • Working temperature: -40℃ to 65℃
  • Available output power range: 10W up to 1500W
