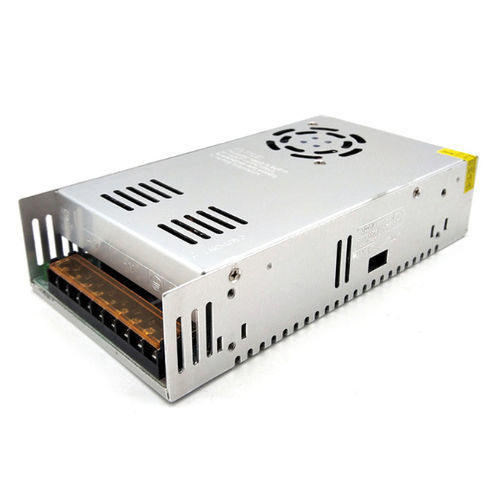

AC/DC power supply VT-S seriesregulatedsingle-outputswitching
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- single-output, regulated
- Technology
- switching
- Network
- single-phase
- Protection
- with short-circuit protection, with overload protection
- Applications
- for industrial applications, for telecommunications equipment, laboratory, electronic equipment, for medical applications, for electrical networks, for LED lighting, for PC, for control panels, for CCTV cameras
- Other characteristics
- wide input range, high-power, high-performance, high-frequency
- Input voltage
Max.: 240 V
Min.: 100 V
- Output voltage
36 V
- Power
Max.: 1,500 W
Min.: 360 W
- Output frequency
Max.: 63 Hz
Min.: 47 Hz
Description
Description
Switch Power Supply (SMPS) is a high-frequency power conversion device and a type of power supply. Its function is to convert a level of voltage into the voltage or current required by the user through different forms of architecture.
Application
General notes
Warranty: 2-year
5V series (10W-60W)
Model Name: VT-S-10-5 / VT-S-15-5 / VT-S-25-5 / VT-S-40-5 / VT-S-50-5 / VT-S-60-5
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 5VDC
Output voltage adjustment range: ±10%
Output Current: 2A / 3A / 5A / 8A / 10A / 12A
Output Power: 10W / 15W / 25W / 40W / 50W / 60W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 70*40*30mm / 85*58*33mm / 110*78*36mm / 129*99*40mm
Weight: 0.06kg / 0.12kg / 0.18kg / 0.28kg
5V series (100W-400W)
Product Name: VT-S-100-5 / VT-S-150-30 / VT-S-200-40 / VT-S-300-60 / VT-S-350-70 / VT-S-400-80
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 5VDC
Output voltage adjustment range: ±10%
Output Current: 20A / 30A / 40A / 60A / 70A / 80A
Output Power: 100W / 150W / 200W / 300W / 350W / 400W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 199*98*42mm / 200*110*50mm / 215*113*50mm / 215*115*30mm
Weight: 0.45kg / 0.57kg / 0.74kg / 0.78kg
12V series (12W-180W)
Product Name: VT-S-12-12 / VT-S-36-12 / VT-S-60-12 / VT-S-120-12 / VT-S-150-12 / VT-S-180-12
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 12VDC
Output voltage adjustment range: ±10%
Output Current: 1A / 3A / 5A / 10A / 12.5A / 15A
Output Power: 12W / 36W / 60W / 120W / 150W / 180W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 70*40*30mm / 85*58*33mm / 110*78*36mm / 129*99*40mm / 199*98*42mm
Weight: 0.058kg / 0.12kg / 0.18kg / 0.28kg / 0.44kg
12V series (200W-1000W)
Product Name: VT-S-240-12 / VT-S-360-12 / VT-S-480-12 / VT-S-600-12 / VT-S-720-12 / VT-S-1000-12
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 12VDC
Output voltage adjustment range: ±10%
Output Current: 20A / 30A / 40A / 50A / 60A / 83A
Output Power: 240W / 360W / 480W / 600W / 720W / 1000W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 200*110*50mm / 215*113*50mm / 242*124*65mm
Weight: 0.6kg / 0.73kg / 1.2kg
24V series (24W-180W)
Product Name: VT-S-24-24 / VT-S-72-24 / VT-S-120-24 / VT-S-150-24 / VT-S-240-24 / VT-S-360-24
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 24VDC
Output voltage adjustment range: ±10%
Output Current: 1A / 3A / 5A / 6.25A / 10A / 15A
Output Power: 24W / 72W / 120W / 150W / 240W / 360W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 85*58*33mm / 110*78*36mm / 129*99*40mm / 199*98*42mm / 200*110*50mm / 215*113*50mm
Weight: 0.09kg / 0.18kg / 0.28kg / 0.45kg / 0.6kg / 0.73kg
24V series (480W-1500W)
Product Name: VT-S-480-24 / VT-S-600-24 / VT-S-720-24 / VT-S-800-24 / VT-S-1000-24 / VT-S-1500-24
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 24VDC
Output voltage adjustment range: ±10%
Output Current: 20A / 25A / 30A / 33.3A / 41.6A / 62.5A
Output Power: 480W / 600W / 720W / 800W / 1000W / 1500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 215*113*50mm / 242*124*65mm / 246*133*70mm
Weight: 0.8kg / 1.2kg / 1.6kg
36V series (360W-1500W)
Product Name: VT-S-360-36 / VT-S-600-36 / VT-S-720-36 / VT-S-1000-36 / VT-S-1500-36
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 36VDC
Output voltage adjustment range: ±10%
Output Current: 10A / 16.7A / 20A / 27.8A / 41.6A
Output Power: 360W / 600W / 720W / 1000W / 1500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 215*113*50mm / 242*124*65mm / 246*133*70mm
Weight: 0.8kg / 1.2kg / 1.8kg
48V series (150W-500W)
Product Name: VT-S-150-48 / VT-S-360-48 / VT-S-400-48 / VT-S-480-48 / VT-S-500-48
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 48VDC
Output voltage adjustment range: ±10%
Output Current: 3A (various models)
Output Power: 150W / 360W / 400W / 480W / 500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 199*98*42mm / 215*113*50mm
Weight: 0.47kg / 0.8kg
48V series (600W-1500W)
Product Name: VT-S-600-48 / VT-S-720-48 / VT-S-800-48 / VT-S-1000-48 / VT-S-1500-48
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 48VDC
Output voltage adjustment range: ±10%
Output Current: 12.5A / 15A / 16.7A / 20.8A / 31.3A
Output Power: 600W / 720W / 800W / 1000W / 1500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 215*113*50mm / 242*124*65mm / 246*133*70mm
Weight: 0.8kg / 1.2kg / 1.6kg
Caractéristiques / spécifications techniques
Switch Power Supply (SMPS) is a high-frequency power conversion device and a type of power supply. Its function is to convert a level of voltage into the voltage or current required by the user through different forms of architecture.
Application
- Industrial automation control
- Military equipment
- Scientific research equipment
- LED lighting
- Industrial control equipment
- Communication equipment
- Power equipment
- Instrumentation
- Medical equipment
- Semiconductor refrigeration and heating
- Air purifiers and electronic refrigerators
- Liquid crystal displays (LCD)
- Audio-visual products
- Security monitoring
- LED light strips
- Computer cases and digital instruments
General notes
Warranty: 2-year
5V series (10W-60W)
Model Name: VT-S-10-5 / VT-S-15-5 / VT-S-25-5 / VT-S-40-5 / VT-S-50-5 / VT-S-60-5
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 5VDC
Output voltage adjustment range: ±10%
Output Current: 2A / 3A / 5A / 8A / 10A / 12A
Output Power: 10W / 15W / 25W / 40W / 50W / 60W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 70*40*30mm / 85*58*33mm / 110*78*36mm / 129*99*40mm
Weight: 0.06kg / 0.12kg / 0.18kg / 0.28kg
5V series (100W-400W)
Product Name: VT-S-100-5 / VT-S-150-30 / VT-S-200-40 / VT-S-300-60 / VT-S-350-70 / VT-S-400-80
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 5VDC
Output voltage adjustment range: ±10%
Output Current: 20A / 30A / 40A / 60A / 70A / 80A
Output Power: 100W / 150W / 200W / 300W / 350W / 400W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 199*98*42mm / 200*110*50mm / 215*113*50mm / 215*115*30mm
Weight: 0.45kg / 0.57kg / 0.74kg / 0.78kg
12V series (12W-180W)
Product Name: VT-S-12-12 / VT-S-36-12 / VT-S-60-12 / VT-S-120-12 / VT-S-150-12 / VT-S-180-12
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 12VDC
Output voltage adjustment range: ±10%
Output Current: 1A / 3A / 5A / 10A / 12.5A / 15A
Output Power: 12W / 36W / 60W / 120W / 150W / 180W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 70*40*30mm / 85*58*33mm / 110*78*36mm / 129*99*40mm / 199*98*42mm
Weight: 0.058kg / 0.12kg / 0.18kg / 0.28kg / 0.44kg
12V series (200W-1000W)
Product Name: VT-S-240-12 / VT-S-360-12 / VT-S-480-12 / VT-S-600-12 / VT-S-720-12 / VT-S-1000-12
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 12VDC
Output voltage adjustment range: ±10%
Output Current: 20A / 30A / 40A / 50A / 60A / 83A
Output Power: 240W / 360W / 480W / 600W / 720W / 1000W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 200*110*50mm / 215*113*50mm / 242*124*65mm
Weight: 0.6kg / 0.73kg / 1.2kg
24V series (24W-180W)
Product Name: VT-S-24-24 / VT-S-72-24 / VT-S-120-24 / VT-S-150-24 / VT-S-240-24 / VT-S-360-24
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 24VDC
Output voltage adjustment range: ±10%
Output Current: 1A / 3A / 5A / 6.25A / 10A / 15A
Output Power: 24W / 72W / 120W / 150W / 240W / 360W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 85*58*33mm / 110*78*36mm / 129*99*40mm / 199*98*42mm / 200*110*50mm / 215*113*50mm
Weight: 0.09kg / 0.18kg / 0.28kg / 0.45kg / 0.6kg / 0.73kg
24V series (480W-1500W)
Product Name: VT-S-480-24 / VT-S-600-24 / VT-S-720-24 / VT-S-800-24 / VT-S-1000-24 / VT-S-1500-24
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 24VDC
Output voltage adjustment range: ±10%
Output Current: 20A / 25A / 30A / 33.3A / 41.6A / 62.5A
Output Power: 480W / 600W / 720W / 800W / 1000W / 1500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 215*113*50mm / 242*124*65mm / 246*133*70mm
Weight: 0.8kg / 1.2kg / 1.6kg
36V series (360W-1500W)
Product Name: VT-S-360-36 / VT-S-600-36 / VT-S-720-36 / VT-S-1000-36 / VT-S-1500-36
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 36VDC
Output voltage adjustment range: ±10%
Output Current: 10A / 16.7A / 20A / 27.8A / 41.6A
Output Power: 360W / 600W / 720W / 1000W / 1500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 215*113*50mm / 242*124*65mm / 246*133*70mm
Weight: 0.8kg / 1.2kg / 1.8kg
48V series (150W-500W)
Product Name: VT-S-150-48 / VT-S-360-48 / VT-S-400-48 / VT-S-480-48 / VT-S-500-48
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 48VDC
Output voltage adjustment range: ±10%
Output Current: 3A (various models)
Output Power: 150W / 360W / 400W / 480W / 500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 199*98*42mm / 215*113*50mm
Weight: 0.47kg / 0.8kg
48V series (600W-1500W)
Product Name: VT-S-600-48 / VT-S-720-48 / VT-S-800-48 / VT-S-1000-48 / VT-S-1500-48
Brand: VOITA
Input Voltage: 100V-240VAC
Output Voltage: 48VDC
Output voltage adjustment range: ±10%
Output Current: 12.5A / 15A / 16.7A / 20.8A / 31.3A
Output Power: 600W / 720W / 800W / 1000W / 1500W
Frequency: 47~63HZ
Efficiency: 87%
Over voltage protection: Yes
Over Load protection: Yes
Humidity: 20%-90%RH
Ripple: 120mVp-p
Working temperature: —40℃~65℃
Short circuit protection: Yes
Dimension: 215*113*50mm / 242*124*65mm / 246*133*70mm
Weight: 0.8kg / 1.2kg / 1.6kg
Caractéristiques / spécifications techniques
- Input Voltage: 100V-240VAC (universal AC input)
- Output voltages available: 5VDC, 12VDC, 24VDC, 36VDC, 48VDC depending on model
- Output voltage adjustment range: ±10%
- Efficiency (typical): 87%
- Frequency: 47~63Hz
- Ripple: 120mVp-p
- Working temperature range: −40℃ to 65℃
- Humidity: 20%–90% RH
- Protections: Over-voltage protection, Over-load protection, Short-circuit protection
- Power range covered: from 10W up to 1500W across series and models
- Typical dimensions and weights vary by model (see series tables above for details)
- Warranty: 2-year
Catalogs
No catalogs are available for this product.
See all of Guangzhou Voita Electronic Technology Co., Ltd.‘s catalogsOther Guangzhou Voita Electronic Technology Co., Ltd. products
Switching Power Supply
Related Searches
- Power supply unit
- DC power supply unit
- AC/DC power supply unit
- CE power supply unit
- SMPS power supply
- Single-output power supply unit
- Power supply for industrial applications
- DC/DC converter module
- Battery charger
- Compact power supply unit
- Power supply with overload protection
- Benchtop power supply
- Adjustable power supply
- Rack-mount power supply
- Single-phase power supply unit
- Programmable power supply
- Lead battery charger
- Regulated power supply
- Telecommunications equipment power supply
- Laboratory power supply
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
