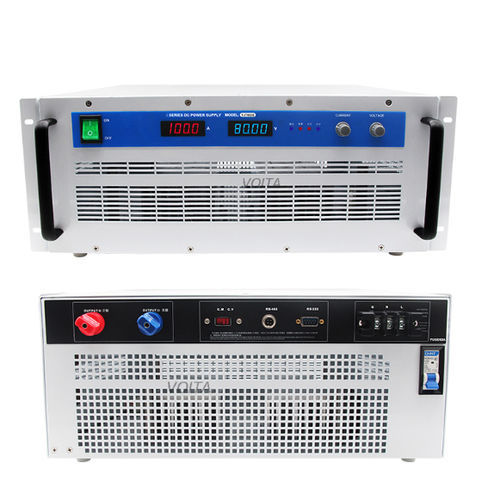

3U power supply VT-ADP10010AC/DCregulatedconstant-current
Add to favorites
Compare this product
Characteristics
- Mounting / format
- 3U
- Type
- AC/DC
- Output
- single-output, regulated, variable-output, constant-current
- Network
- single-phase, three-phase
- Protection
- with overload protection, with overheating protection, with current limiting
- Applications
- for industrial applications, laboratory, for medical applications, for LED lighting, for marine applications, for control panels, for railway vehicles, for power tools
- Other characteristics
- high-power, computer-controlled, fan cooled
- Input voltage
110 V, 220 V, 380 V
- Output voltage
Min.: 0 V
Max.: 1,000 V
- Current
Min.: 0 A
Max.: 10 A
- Power
10,000 W
Description
Short description
Input Voltage Range: 1. Phase: AC110V±10%, 50Hz/60Hz; 2. Phase: AC220V±10%, 50Hz/60Hz; 3. Phase: AC380V±10%, 50Hz/60Hz. Output voltage: 0-1000VDC. Output current: 0-10A. Size & Weight: 10000W Rack Mount 3U: 680*490*135mm / 36.8kg. Warranty: 2-year.
Application
Customize Range
Technical Parameters (table)
Model: VT-ADP10010
Input Voltage Range: 1 Phase: AC110V±10%, 50Hz/60Hz; 1 Phase: AC220V±10%, 50Hz/60Hz; 3 Phase: AC380V±10%, 50Hz/60Hz
Output voltage: 0-1000VDC
Output current: 0-10A
Power: 10000W
Voltage Stabilization: ≤0.3% + 10mV
Load Stabilization: ≤0.5% + 30mV
Ripples and Noises: ≤0.5% + 10mVrms
Voltage Display Accuracy: 4-digit Accuracy: ±1% + 1 word (10%-100% rating); ranges: 0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V
Current Display Accuracy: 4-digit Accuracy: ±1% + 1 word (10%-100% rating); ranges: 0.000A-9.999A, 0.00A-99.99A, 0-0A-999.9A
Insulation resistance: Input-output: ≥ 20MΩ; Input-shell: ≥ 20MΩ; Output-shell: ≥ 80MΩ
Insulation strength: Input-output: AC1500V, 10mA, 1 minute; Input-shell: AC1500V, 10mA, 1 minute; Output-shell: AC1500V, 10mA, 1 minute
Output OverVoltage Protection: Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection: Overload, current limit, constant current output
OverTemperature Protection: Built-in O.T.P. protection, protection value: 85℃ ± 5% heat sink temperature
Voltage Setting: 10-turn precision potentiometer
Current Setting: 10-turn precision potentiometer
Output Polarity: Output Positive (+) negative (-) can be grounded at will
Heat Dissipation Way: Forced fan cooling
Work Conditions: Indoor use design; Temperature: 0℃~40℃; Humidity: 10%~85% RH
Storage Conditions: Temperature: -20℃~70℃; Humidity: 10%~90% RH
Product Dimension: 680*490*135mm
Model List (selection)
Header: Model | Input voltage | Output maximum voltage | Output maximum current | High flow standard | Dimensions | Weight
1500W No display | AC110/220/380V | DC1000V | 100A | 100A | 285*152*110mm | 5.3kg
1500W Portable | AC110/220/380V | DC2000V | 125A | 100A | 150*350*160mm | 6.7KG
2000W Portable | AC110/220/380V | DC2000V | 125A | 100A | 150*350*160mm | 6.7KG
1500W/2000W 2U Rack Mount | AC110/220/380V | DC2000V | 150A | 100A | 483*430*90mm | 12.8KG
3000W Portable | AC110/220/380V | DC3000V | 250A | 200A | 220*460*170mm | 12.5KG
3000W Rack Mount 2U | AC110/220/380V | DC3000V | 300A | 200A | 483*430*90mm | 15.5KG
4000W Portable | AC110/220/380V | DC3000V | 300A | 200A | 220*460*170mm | 13.8KG
5000W Rack Mount 3U | AC110/220/380V | DC3000V | 500A | 250A | 483*485*135mm | 21.5KG
6000W | AC110/220/380V | DC3000V | 500A | 500A | 483*460*180mm | 22.5KG
6000W Rack Mount 3U | AC110/220/380V | DC3000V | 500A | 500A | 483*485*135mm | 23.5KG
8000W Rack Mount 3U | AC110/220/380V | DC3000V | 500A | 500A | 483*485*135mm | 26.5KG
10KW Rack Mount 3U | AC380V | DC3000V | 800A | 500A | 680*490*135mm | 36.2KG
12KW Rack Mount 3U | AC380V | DC3000V | 800A | 500A | 680*490*135mm | 36.8KG
15KW-18KW Rack Mount 8U | AC380V | DC3000V | 1200A | 500A | 740*530*480mm (including terminals and casters) | 72KG
20KW-25KW Rack Mount 8U | AC380V | DC3000V | 1200A | 500A | 740*530*480mm (including terminals and casters) | 81KG
25KW-30KW Rack Mount 16U | AC380V | DC3000V | / | / | 785*730*520mm | 140KG
30KW-40KW Rack Mount 16U | AC380V | DC3000V | / | / | 785*730*520mm | 170KG
40KW-50KW Rack Mount 16U | AC380V | DC3000V | / | / | 785*730*520mm | 190KG
Caractéristiques / spécifications techniques
Input Voltage Range: 1. Phase: AC110V±10%, 50Hz/60Hz; 2. Phase: AC220V±10%, 50Hz/60Hz; 3. Phase: AC380V±10%, 50Hz/60Hz. Output voltage: 0-1000VDC. Output current: 0-10A. Size & Weight: 10000W Rack Mount 3U: 680*490*135mm / 36.8kg. Warranty: 2-year.
Application
- Adjustable DC regulated power supply is widely used in industrial control, electronic power, electroplating, communication, scientific research.
- Instrument, military, medical, ship, railway and other high-tech fields.
- Motor: electric motor, electric vehicle controller, DC motor test, etc.
- Electric tools: LED test and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification, etc.
- Automobile: automobile electronics, high-power DC motor, automobile motor controller, car lighting, cigarette lighter, automobile audio and video, etc.
- Electronic devices: capacitors, resistors, relays, transistors, sensors, etc.
- Display: display screen, liquid screen, touchscreen, on-board DVD, mobile phone display.
- Electrochemical class: electrolysis, electroplating, anodic oxidation, nonferrous metal research, etc.
Customize Range
- Input voltage: 1 phase 110VAC/220VAC or 3 phases 380VAC.
- Output voltage: 0-3000V variable or appointed.
- Output current: 0-2000A variable or appointed.
- Serial port: RS232, RS485, timing switch.
- 750KW Max Output (custom ranges available).
Technical Parameters (table)
Model: VT-ADP10010
Input Voltage Range: 1 Phase: AC110V±10%, 50Hz/60Hz; 1 Phase: AC220V±10%, 50Hz/60Hz; 3 Phase: AC380V±10%, 50Hz/60Hz
Output voltage: 0-1000VDC
Output current: 0-10A
Power: 10000W
Voltage Stabilization: ≤0.3% + 10mV
Load Stabilization: ≤0.5% + 30mV
Ripples and Noises: ≤0.5% + 10mVrms
Voltage Display Accuracy: 4-digit Accuracy: ±1% + 1 word (10%-100% rating); ranges: 0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V
Current Display Accuracy: 4-digit Accuracy: ±1% + 1 word (10%-100% rating); ranges: 0.000A-9.999A, 0.00A-99.99A, 0-0A-999.9A
Insulation resistance: Input-output: ≥ 20MΩ; Input-shell: ≥ 20MΩ; Output-shell: ≥ 80MΩ
Insulation strength: Input-output: AC1500V, 10mA, 1 minute; Input-shell: AC1500V, 10mA, 1 minute; Output-shell: AC1500V, 10mA, 1 minute
Output OverVoltage Protection: Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection: Overload, current limit, constant current output
OverTemperature Protection: Built-in O.T.P. protection, protection value: 85℃ ± 5% heat sink temperature
Voltage Setting: 10-turn precision potentiometer
Current Setting: 10-turn precision potentiometer
Output Polarity: Output Positive (+) negative (-) can be grounded at will
Heat Dissipation Way: Forced fan cooling
Work Conditions: Indoor use design; Temperature: 0℃~40℃; Humidity: 10%~85% RH
Storage Conditions: Temperature: -20℃~70℃; Humidity: 10%~90% RH
Product Dimension: 680*490*135mm
Model List (selection)
Header: Model | Input voltage | Output maximum voltage | Output maximum current | High flow standard | Dimensions | Weight
1500W No display | AC110/220/380V | DC1000V | 100A | 100A | 285*152*110mm | 5.3kg
1500W Portable | AC110/220/380V | DC2000V | 125A | 100A | 150*350*160mm | 6.7KG
2000W Portable | AC110/220/380V | DC2000V | 125A | 100A | 150*350*160mm | 6.7KG
1500W/2000W 2U Rack Mount | AC110/220/380V | DC2000V | 150A | 100A | 483*430*90mm | 12.8KG
3000W Portable | AC110/220/380V | DC3000V | 250A | 200A | 220*460*170mm | 12.5KG
3000W Rack Mount 2U | AC110/220/380V | DC3000V | 300A | 200A | 483*430*90mm | 15.5KG
4000W Portable | AC110/220/380V | DC3000V | 300A | 200A | 220*460*170mm | 13.8KG
5000W Rack Mount 3U | AC110/220/380V | DC3000V | 500A | 250A | 483*485*135mm | 21.5KG
6000W | AC110/220/380V | DC3000V | 500A | 500A | 483*460*180mm | 22.5KG
6000W Rack Mount 3U | AC110/220/380V | DC3000V | 500A | 500A | 483*485*135mm | 23.5KG
8000W Rack Mount 3U | AC110/220/380V | DC3000V | 500A | 500A | 483*485*135mm | 26.5KG
10KW Rack Mount 3U | AC380V | DC3000V | 800A | 500A | 680*490*135mm | 36.2KG
12KW Rack Mount 3U | AC380V | DC3000V | 800A | 500A | 680*490*135mm | 36.8KG
15KW-18KW Rack Mount 8U | AC380V | DC3000V | 1200A | 500A | 740*530*480mm (including terminals and casters) | 72KG
20KW-25KW Rack Mount 8U | AC380V | DC3000V | 1200A | 500A | 740*530*480mm (including terminals and casters) | 81KG
25KW-30KW Rack Mount 16U | AC380V | DC3000V | / | / | 785*730*520mm | 140KG
30KW-40KW Rack Mount 16U | AC380V | DC3000V | / | / | 785*730*520mm | 170KG
40KW-50KW Rack Mount 16U | AC380V | DC3000V | / | / | 785*730*520mm | 190KG
Caractéristiques / spécifications techniques
- Model: VT-ADP10010
- Power: 10000W
- Input voltage range: 1 phase AC110V±10% / AC220V±10% or 3 phase AC380V±10%, 50Hz/60Hz
- Output voltage: 0-1000VDC
- Output current: 0-10A
- Product dimension: 680*490*135mm
- Weight: 36.8kg
- Voltage stabilization: ≤0.3% + 10mV
- Load stabilization: ≤0.5% + 30mV
- Ripples & noises: ≤0.5% + 10mVrms
- Display accuracies: Voltage & Current 4-digit, ±1% + 1 word (10%-100% rating)
- Protections: O.V.P. (built-in), overload/current limit/constant current output, O.T.P. (built-in, ~85℃)
- Cooling: Forced fan cooling
- Operating conditions: 0℃~40℃, 10%~85% RH
