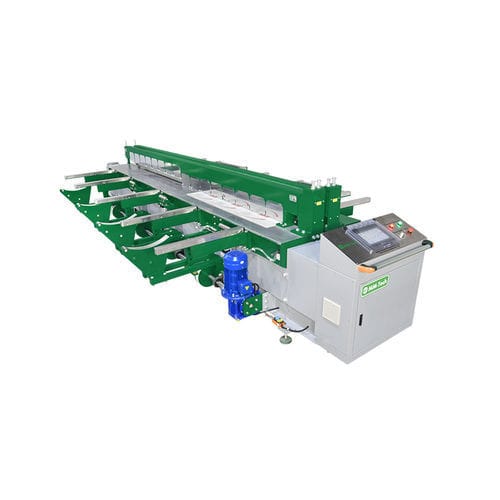

Butt welding machine SWT-PH1500hot platePLC-controlledfor PVC
Add to favorites
Compare this product
Characteristics
- Technique
- butt, hot plate
- Operational mode
- PLC-controlled
- Applications
- for PVC, for plastics, thermoplastic sheet, for the plastics industry
- Power supply
- 230V single phase
- Other characteristics
- CNC, pneumatic, electric, precision, with touch screen, programmable
- Power
Min.: 3,000 W
(4.079 hp)Max.: 3,000 W
(4.079 hp)- Weld thickness
Min.: 2 mm
(0.1 in)Max.: 15 mm
(0.6 in)
Description
Product Overview
The MM-Tech SWT-PH1500 butt welding system is designed for precise end-to-end welding of thermoplastic sheets (PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall). It supports horizontal circular welding and can be configured for 90° vertical jointing on request. The machine covers weldable thicknesses from 2–15 mm and a maximum working length of 1500 mm, making it suitable for manufacturing tanks, pipelines, ventilation components and a range of plastic assemblies used in water treatment, chemical storage and infrastructure projects.
Applications
Key Features
Data Sheet
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall sheets
Max. working length: 1500 mm
Weldable thickness: 2–15 mm
Min. cylinder diameter: 280 mm
Pressure setting: Digital
Pressure controller: SMC electric proportional valve
Power consumption: 3 kW
Power supply: AC 230V 1P 50/60Hz
Compressed air: 6–8 kg/cm²
Sheet locking clamps: Pneumatic
Welding system: CNC
Display: 10" WEINVIEW
Hardware control panel: SIEMENS / MITSUBISHI PLC
Full load current: 14 A
Heating plate power: 1P / 3 kW
Power cable size: 2×2.5 mm²
Specifications & Options
The MM-Tech SWT-PH1500 butt welding system is designed for precise end-to-end welding of thermoplastic sheets (PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall). It supports horizontal circular welding and can be configured for 90° vertical jointing on request. The machine covers weldable thicknesses from 2–15 mm and a maximum working length of 1500 mm, making it suitable for manufacturing tanks, pipelines, ventilation components and a range of plastic assemblies used in water treatment, chemical storage and infrastructure projects.
Applications
- Aquaculture tanks
- Fire truck water tanks
- Plating / chemical tanks
- Scrubbers and waste-gas treatment towers
- Swimming pools
- Ventilation systems and ducts
- Water containers and storage tanks
- Water treatment system components
Key Features
- Compliant with welding standard DVS2207
- Automatic CNC welding control with PLC and 10" touch screen
- Hinge connection for improved alignment accuracy
- Wireless remote for belt motor control
- Full-automatic rolling clamp option and pneumatic locking clamps
- Dual digital display thermostat and DuPont Teflon-coated heating plate
- High-precision sheet positioning for stable, repeatable heating and straight-line welds
- Multi-point clamp lifting and SMC electric proportional pressure control
- Major components from Festo, Siemens, Schneider Electric
Data Sheet
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall sheets
Max. working length: 1500 mm
Weldable thickness: 2–15 mm
Min. cylinder diameter: 280 mm
Pressure setting: Digital
Pressure controller: SMC electric proportional valve
Power consumption: 3 kW
Power supply: AC 230V 1P 50/60Hz
Compressed air: 6–8 kg/cm²
Sheet locking clamps: Pneumatic
Welding system: CNC
Display: 10" WEINVIEW
Hardware control panel: SIEMENS / MITSUBISHI PLC
Full load current: 14 A
Heating plate power: 1P / 3 kW
Power cable size: 2×2.5 mm²
Specifications & Options
- Model: SWT-PH1500
- Optional rocker arm / column device and 90° vertical jointing fixture
- Optional automatic sheet rolling/feeding system
- Designed for industrial applications: chemical storage, water treatment, HVAC and utility infrastructure
