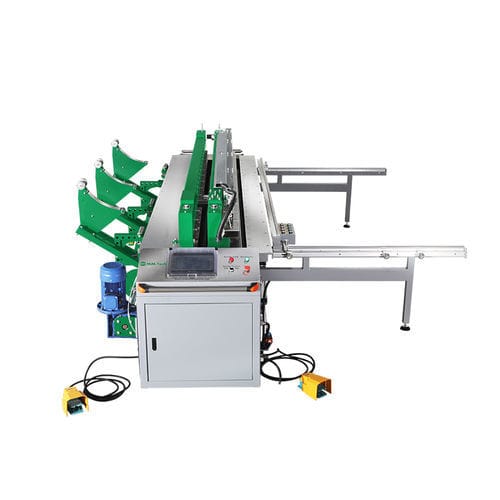

Polypropylene plastic bending SWT-PZ2000

polyvinyl chloridethermoplasticPMMA

Short description
This welding and bending machine is designed for processing thermoplastic sheets (PE, PP, PVC, PVDF, PC, ABS, Acrylic). It performs horizontal circular welding and single-sheet bending from 0° to 95°.

Overview
The MM-Tech SWT-PZ2000 accepts thermoplastic sheets up to 2000 mm wide and integrates flat welding, angle bending and round forming on a single platform. It is fitted with SMC pneumatic components, precise alignment guides, an optional cooling system and CNC control (Siemens / Mitsubishi PLC with 10-inch WEINVIEW touch display) to support fabrication in chemical, environmental and industrial applications.

Product features

• Compliant with welding standard DVS2207
• Automatic welding system with CNC control
• Hinge-connection welding for improved joint accuracy
• Wireless remote control for belt motor
• Full automatic clamp for rolling
• Pneumatic sheet locking clamps
• Dual digital-display thermostat
• High-quality components (Festo, Siemens, Schneider Electric)
• High-precision sheet positioning; stable, repeatable heating and straight-line welding
• Multi-point control clamp lifting
• Heating plate Teflon coated by Dupont
• Optional rocker arm / column forming devices
• Weldable and bending thickness range: 3–25 mm

Technical specifications

• Model: SWT-PZ2000
• Max. working width: 2000 mm
• Weldable / bending thickness: 3–25 mm
• Min. cylinder diameter (for round forming): 350 mm
• Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall sheets
• Pressure control: Digital; SMC electric proportional valve
• Power supply: AC 380V 1P 50/60Hz
• Power consumption: 12.5 kW; Full load current: 22 A
• Cylinder motor: 2.2 kW
• Compressed air: 6–8 kg/cm²
• Welding system: CNC; Control PLC: SIEMENS / MITSUBISHI
• Display: WEINVIEW 10-inch touch
• Power cable size: 4 × 4 mm²

Applications

• Water treatment systems and tanks
• Containers and reservoirs
• Ventilation systems and scrubbers
• Swimming pools and filtration systems
• Galvanic / chemical tanks and industrial vessels
• Aquaculture and mobile water tanks

Optional accessories

• Cooling system
• Automatic rolling/lamination devices
• Rocker arm or column forming device
