Butt welding machine SWT-PH3000

PLC-controlledstandalonefor PVC

Product overview

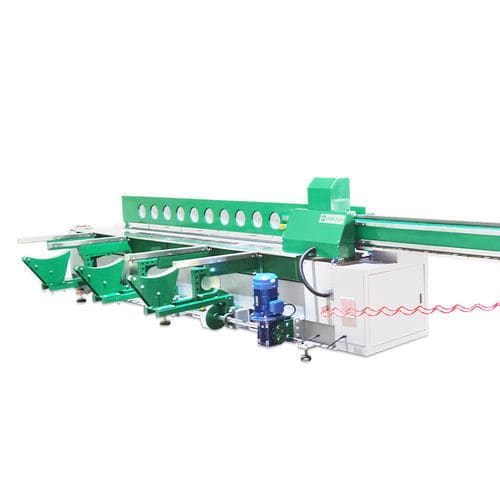

The MM-Tech SWT-PH3000 is a CNC butt-fusion welding machine for thermoplastic sheets. It supports horizontal circular welding and can be configured for optional 90° vertical sheet jointing. Suitable materials include PE, PP, PVC, PVDF, PC, ABS and acrylic twin-wall sheets.

Description
The SWT-PH3000 is designed for industrial applications requiring large-format sheet welding with consistent, repeatable results. Key control components include Siemens/Mitsubishi PLC and a 10-inch WEINVIEW touch display, digital pressure setting with SMC electric proportional valve, and a Teflon-coated heating plate. The machine integrates automatic sheet rolling devices, pneumatic locking clamps and remote control for the rolling-belt motor to facilitate continuous welding operations.

Applications

• Water treatment systems and tanks
• Large water containers and storage tanks
• Swimming pools
• Ventilation and exhaust gas treatment towers
• Scrubbers and plating tanks
• Fire truck water tanks
• Aquaculture tanks

Technical Table (page data)

• Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets
• Max. working length (mm): 3000 mm
• Weldable thickness (mm): Hard sheet 3–50 mm (some references list 3–40 mm); Hollow sheet up to 80 mm
• Min. cylinder diameter (mm): 350 mm
• Pressure setting method: Digital
• Pressure controller: SMC electric proportional valve
• Power consumption (kW): 9 kW (heating plate 3P / 6 kW; rolling belt motor 3 kW)
• Power supply: AC 380V 3P 50/60Hz
• Compressed air requirement: 6–8 kg/cm²
• Display: 10 inch WEINVIEW; Hardware control panel: SIEMENS / MITSUBISHI PLC

Product Features

• Compliant with welding standard DVS2207
• Automatic CNC welding system
• Hinge-connection welding for improved alignment
• Wireless remote control for belt motor
• Full automatic clamp for rolling operations
• Pneumatic locking clamps and multipoint clamp lifting
• Dual digital display thermostat
• High-precision sheet positioning, stable heating and straight-line welding
• Heating plate Teflon coated by Dupont
• Uses components from Festo, Siemens, Schneider Electric
• Optional 90° angle device and rocker arm / column device

Characteristics / Technical specifications

• Model: SWT-PH3000
• Maximum welding width / working length: 3000 mm
• Weldable sheet thickness: Hard sheet 3–50 mm; Hollow sheet up to 80 mm
• Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets
• Total power consumption: 9 kW; Heating plate: 3P / 6 kW; Rolling belt motor: 3 kW
• Control: CNC welding system with SIEMENS / MITSUBISHI PLC and 10" WEINVIEW display
• Pressure control: Digital setting with SMC electric proportional valve
• Compressed air: 6–8 kg/cm²
• Min. cylinder diameter: 350 mm
• Full load current: 15.5 A; Power cable size: 4 × 2.5 mm²
