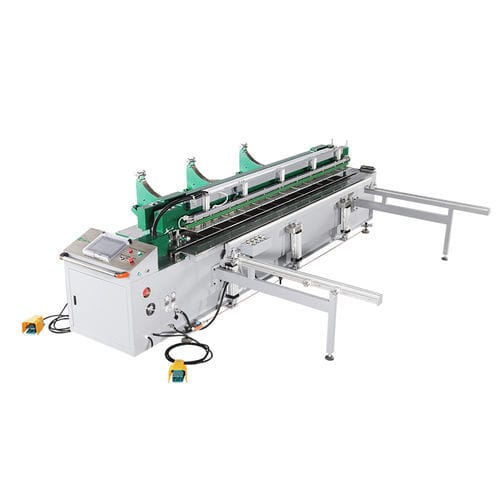

Pneumatic bending machine SWT-PZ6000

for PVC profilesfor plastic profileshorizontal

Overview
The SWT-PZ6000 is a CNC plastic sheet welding and bending machine for thermoplastic sheets (PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall). It performs horizontal circular welding and single-sheet bending from 0 to 95°, with a maximum working width of 6000 mm. Digital temperature control, servo drives and CNC control provide uniform heating and repeatable weld and bend quality, suitable for large containers and industrial plastic piping fabrication.

Applications

• Water treatment systems
• Water tanks and containers
• Waste gas treatment towers
• Ventilation systems
• Swimming pools
• Scrubbers
• Plating and chemical process tanks
• Fire truck water tanks
• Aquaculture tanks

Key features

• Compliant with welding standard DVS2207
• Automatic CNC welding system
• Hinge-connection welding for improved accuracy
• Wireless remote control for belt motor
• Full automatic clamp for rolling
• Pneumatic locking clamps
• Dual digital-display thermostat
• High-quality components: Festo, Siemens, Schneider Electric
• High-precision sheet positioning with stable, repeatable heating and straight-line welding
• Multi-point clamp lifting control
• Teflon-coated (Dupont) heating plate
• Optional rocker-arm or column devices and automatic sheet rolling
• Siemens/Mitsubishi PLC with 10-inch WEINVIEW touchscreen
• Weldable thickness: rigid sheet 3–50 mm; hollow sheet up to 80 mm; bending thickness 3–25 mm

Technical specifications

• Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall
• Max working length: 6000 mm
• Weldable thickness: rigid 3–50 mm; hollow up to 80 mm
• Bending range/thickness: 0–95°; 3–25 mm
• Minimum cylinder diameter: 600 mm
• Pressure setting: digital; pressure controller: SMC electric proportional valve
• Power consumption: 28 kW; Power supply: AC 380V 3P 50/60Hz; full load current: 59 A; power cable: 4×10 mm²
• Compressed air: 6–8 kg/cm²
• Cylinder motor: 4.4 kW
• Sheet locking clamps: pneumatic
• Welding system: CNC
• Display/control: 10-inch WEINVIEW; Siemens/Mitsubishi PLC

Model

• Model: SWT-PZ6000
• Maximum working width: 6000 mm
