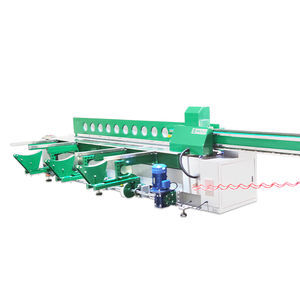

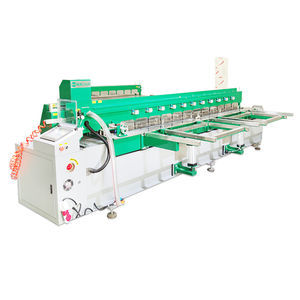

Butt welding machine SWT-PH6000

automaticfor the plastics industrythermoplastic sheet

Overview
This welding machine is designed for butt welding thermoplastic sheets made of PE, PP, PVC, PVDF, PC, ABS and acrylic. It supports horizontal circular welding and can be equipped for 90° vertical jointing on request.

Product Summary
The SWT-PH6000 supports a maximum working width of 6000 mm and weldable thicknesses from 3 mm (solid) up to 80 mm (hollow). The machine features CNC control, digital pressure regulation and pneumatic multi-point clamping on a robust frame. Key components are sourced from international suppliers to ensure long-term operational reliability for chemical, environmental and electroplating applications.

Applications

• Water treatment systems
• Water tanks and containers
• Waste gas treatment towers
• Ventilation systems
• Swimming pools
• Scrubbers
• Plating tanks
• Fire truck water tanks
• Aquaculture tanks

Product Features

• Complies with welding standard DVS2207
• Automatic CNC welding system
• Hinge-connection welding for improved alignment
• Wireless remote for rolling-belt motor
• Fully automatic rolling clamp
• Pneumatic locking clamps with multi-point lift control
• Dual digital-display thermostat
• Heating plate coated with Dupont Teflon
• Major components from Festo, Siemens, Schneider Electric
• SIEMENS / MITSUBISHI PLC with 10-inch touch screen

Technical Specifications

• Model: SWT-PH6000
• Weldable materials: PE, PP, PVC, PVDF, PC, ABS, acrylic twin-wall sheets
• Max. working width: 6000 mm
• Weldable thickness: solid sheets 3–50 mm; hollow sheets up to 80 mm
• Min. cylinder diameter: 600 mm
• Pressure setting: digital; pressure controller: SMC electric proportional valve
• Power supply: AC 380V 3P 50/60Hz; power consumption: 14 kW
• Heating plate power: 11 kW (3P)
• Rolling-belt motor: 3 kW
• Compressed air: 6–8 kg/cm²
• Display: 10-inch WEINVIEW; Control: SIEMENS / MITSUBISHI PLC
• Full load current: 23 A; Power cable size: 4 × 4 mm²
