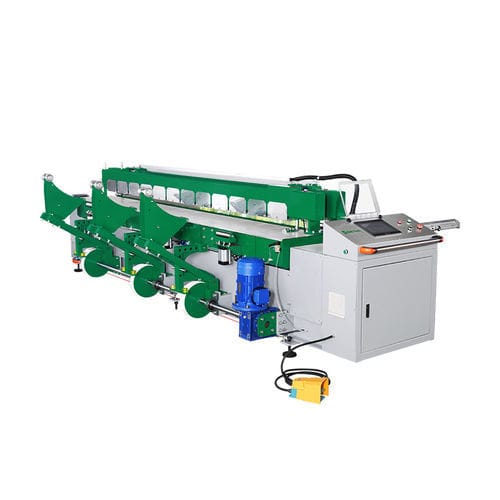

Electric bending machine SWT-PZ4000

profilesheet metalCNC

Overview
This welding and bending machine is designed for processing thermoplastic sheets including HDPE, PE, PP, PVC, PVDF, PC, ABS and acrylic. It performs horizontal circular welding and single-sheet bending from 0° to 95°, and integrates digital temperature control, servo-driven axes and CNC welding management for fabrication of large plastic containers, tanks and pipe assemblies.

Applications

• Water treatment systems
• Water tanks and containers
• Industrial chemical tanks and scrubbers
• Ventilation systems
• Swimming pools
• Plating and process tanks
• Fire truck water tanks
• Aquaculture tanks

Key product features

• Horizontal circular welding and single-sheet bending (0°–95°)
• Digital temperature regulation with dual displays
• Automatic CNC welding control and Siemens/Mitsubishi PLC with 10" WEINVIEW HMI
• Servo-driven mechanisms for even heating and precise bending
• Pneumatic locking clamps and fully automatic rolling clamp
• SMC electric proportional valve for pressure control
• Heating plate with Dupont Teflon coating
• Remote control for belt motor and optional rocker arm/column device
• Major components from Festo, Siemens and Schneider Electric

Technical specifications

• Model: SWT-PZ4000
• Weldable materials: HDPE / PE, PP, PVC, PVDF, PC, ABS, Acrylic (including twin-wall)
• Max. working length / width: 4000 mm
• Weldable thickness: solid sheets 3–50 mm; hollow/twin-wall up to 80 mm
• Bending range: 0°–95° (single-sheet); bending thickness 3–25 mm
• Minimum cylinder diameter: 500 mm
• Power supply: AC 380V 3P 50/60Hz; power consumption: 21 kW; full load current: 41.5 A
• Cylinder motor: 4.4 kW; power cable size: 4 × 6 mm²
• Compressed air requirement: 6–8 kg/cm²
• Pressure control: SMC electric proportional valve
• Clamps: pneumatic sheet locking clamps
• Welding system: CNC; PLC: SIEMENS / MITSUBISHI; Display: 10" WEINVIEW
