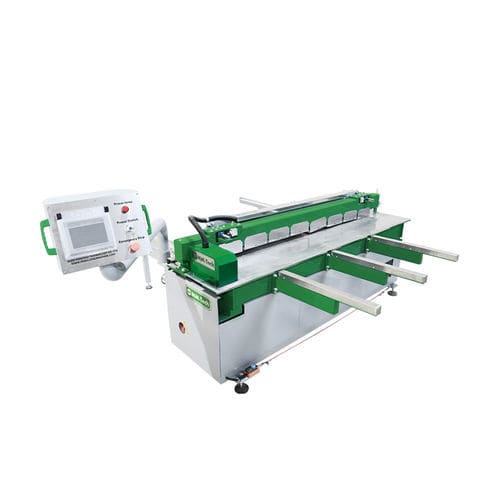

Pneumatic bending machine SWT-ZW1500

electricfor PVC profilesfor plastic profiles

Product overview
MM-Tech SWT-ZW1500 plastic sheet bending machine for forming thermoplastic sheets including PE, PP, PVC, PVDF, PC, ABS and acrylic twin-wall sheets. Maximum bending width 1500 mm, bending thickness range 2–15 mm, adjustable bending angle 0–95°. Digital temperature control, pneumatic sheet locking clamps and CNC welding integration ensure repeatable forming operations.

Applications

• Water treatment systems
• Water tanks and containers
• Waste-gas treatment towers
• Ventilation systems
• Swimming pools and aquaculture tanks
• Scrubbers and plating tanks
• Fire truck water tanks

Key features

• CNC automatic welding system compliant with DVS2207
• Hinge-connection welding for improved joint accuracy
• Pneumatic locking clamps with multi-point control
• Dual digital display thermostat and precise temperature regulation
• Upper and lower heating plates with Dupont Teflon coating
• Siemens / Mitsubishi PLC with 10-inch WEINVIEW touch screen
• Quality components from Festo, Siemens and Schneider Electric
• Optional rocker arm or column device
• Bending thickness range: 2–15 mm

Technical specifications
Bending length: 1500 mm
Bending thickness: 2–15 mm
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, acrylic twin-wall sheets
Power consumption: 5 kW
Bending angle: 0–95° adjustable
Timing: Yes
Alarm: Buzzing
Sheet locking clamps: Pneumatic
Welding system: CNC
Power supply: AC 380 V 1P 50/60 Hz
Compressed air connection: 6–8 kg/cm²
Display: 10-inch WEINVIEW touch screen
Control panel: SIEMENS / MITSUBISHI PLC
Full load current: 11.5 A
Upper heating plate power: 2.5 kW (2P)
Lower heating plate power: 2.5 kW (2P)
Power cable size: 4 × 2.5 mm²

Optional accessories

• Heated knife for station 2/3/4
• Rocker arm or column device
