Polymer electric fusion machine SWT-PH4000

for industrial applications

Overview

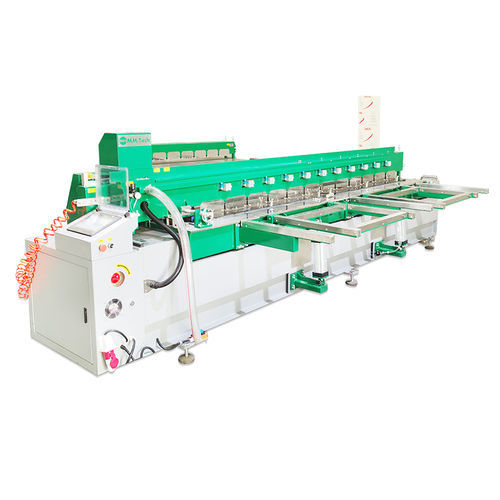

The MM-Tech SWT-PH4000 is an industrial butt-welding machine for thermoplastic sheets (PE, PP, PVC, PVDF, PC, ABS, acrylic). It supports horizontal circular welding and, optionally, 90° vertical jointing for large-format and twin-wall panels.

Short description
Designed for industrial applications such as chemical processing, ventilation, water and wastewater treatment, the SWT-PH4000 provides repeatable, high-precision welds for sheets up to 4000 mm working width. Typical weldable thickness ranges from 3 to 50 mm for solid sheets and up to 80 mm for hollow/twin-wall panels. The system integrates CNC control, automatic clamping and sheet rolling options to streamline production of large thermoplastic assemblies.

Product features

• Compliant with welding standard DVS2207
• Automatic CNC welding process for consistent results
• High-precision hinge/joint welding
• Wireless remote control for rolling-belt motor
• Fully automatic clamp for sheet rolling
• Pneumatic locking clamps with multi-point clamp lifting
• Dual digital-display thermostat and stable temperature control
• Heating plate with Teflon (DuPont) coating
• Optional rocker-arm or column jointing devices for 90° welding
• Siemens / Mitsubishi PLC with 10-inch WEINVIEW touch screen
• Key components from Festo, Siemens and Schneider Electric

Technical specifications

• Model: SWT-PH4000
• Weldable materials: PE, PP, PVC, PVDF, PC, ABS, acrylic twin-wall sheets
• Maximum welding width / working length: 4000 mm
• Weldable thickness: solid sheet 3–50 mm; hollow/twin-wall up to 80 mm
• Minimum cylinder diameter: 500 mm
• Pressure setting: digital
• Pressure controller: SMC electric proportional valve
• Power consumption: 11 kW
• Power supply: AC 380V 3P 50/60Hz
• Compressed air: 6–8 kg/cm²
• Rolling belt motor power: 3 kW
• Heating plate power: 3P / 8 kW (Teflon coated)
• Full load current: 18.5 A
• Power cable size: 4 × 4 mm²
• Welding system: CNC; Display: 10" WEINVIEW

Applications

• Chemical processing equipment
• Ventilation and duct systems
• Water and wastewater treatment plants
• Tanks, containers and linings
• Scrubbers and plating tanks
• Fire truck water tanks
• Aquaculture and pool linings

Notes
Machine supports horizontal circular welding; vertical 90° jointing and automatic sheet rolling devices are available as options to adapt the system to specific production workflows.
