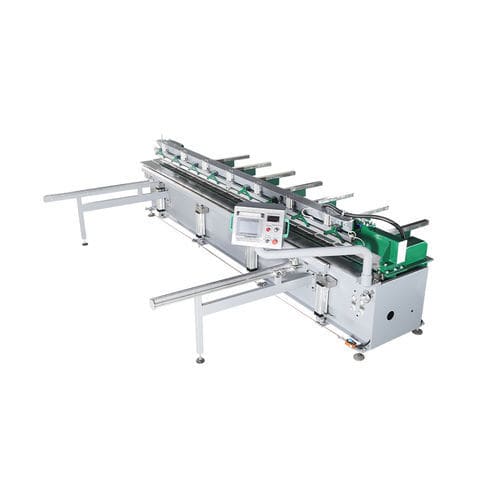

Panel thermoforming machine SWT-ZW4000

ABStwin-sheetPP

Overview
This thermoplastic sheet bending machine MM-Tech SWT-ZW4000 is designed for bending sheets of PE, PP, PVC, PVDF, PC, ABS and acrylic (including twin-wall). It accepts a maximum working width of 4000 mm and sheet thicknesses from 3 to 25 mm. A reinforced frame and digital temperature control ensure stable process parameters. Adjustable bending angle and an intuitive touch control panel enable setup for varied thermoplastic forming tasks.

Applications

• Water treatment systems
• Water tanks and containers
• Waste gas treatment towers
• Ventilation systems
• Swimming pools
• Scrubbers and plating tanks
• Fire truck water tanks
• Aquaculture tanks

Product features

• Automatic CNC welding system
• Compliant with welding standard DVS2207
• Hinge-connection welding for improved alignment
• Pneumatic sheet-locking clamps with multi-point control
• Dual digital-display thermostat and Teflon-coated heating plates (DuPont)
• Siemens or Mitsubishi PLC with 10" WEINVIEW touch display
• Optional rocker-arm or column device
• Key components: Festo, Siemens, Schneider Electric
• Bending thickness range: 3–25 mm

Technical table
Bending length: 4000 mm
Bending thickness: 3–25 mm
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, acrylic twin-wall sheets
Power consumption: 10 kW
Bending angle: 0–95° adjustable
Timing: yes
Alarm: buzzer
Sheet locking clamps: pneumatic
Welding system: CNC
Power supply: AC 380V 3P 50/60Hz
Compressed air: 6–8 kg/cm²
Display: 10" WEINVIEW
Control: SIEMENS / MITSUBISHI PLC
Full load current: 23 A
Upper heating plate power: 2P, 5.0 kW
Lower heating plate power: 2P, 5.0 kW
Power cable size: 4×4 mm²

Specifications

• Max bending length: 4000 mm
• Thickness range: 3–25 mm
• Angle range: 0–95° (adjustable)
• Total power: 10 kW
• Supply voltage: AC 380V 3P 50/60Hz
• Control interface: 10" WEINVIEW touch + Siemens/Mitsubishi PLC
• Compressed air requirement: 6–8 kg/cm²
