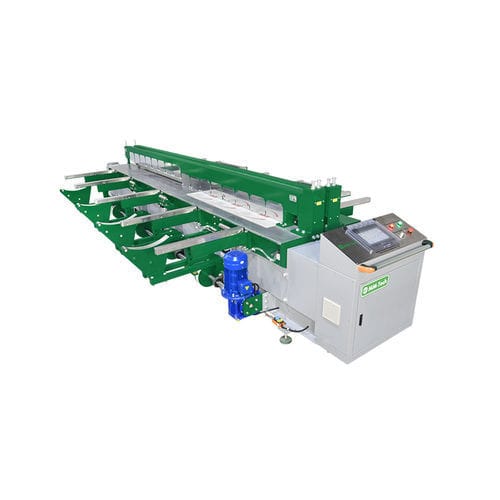

Butt welding machine SWT-PH2000PLC-controlledbenchtopfor storage tanks
Add to favorites
Compare this product
Characteristics
- Technique
- butt
- Operational mode
- PLC-controlled
- Configuration
- benchtop
- Applications
- for PVC, for thermoplastics, thermoplastic sheet, for storage tanks, for the plastics industry, cage
- Power supply
- 230V single phase
- Other characteristics
- precision, CNC, pneumatic, with touch screen, custom-made, with data logging, customized
- Power
Max.: 6,500 W
Min.: 6,500 W
- Weld thickness
Max.: 25 mm
(1 in)Min.: 3 mm
(0.1 in)
Description
Overview
The MM-Tech SWT-PH2000 delivers robust, high-efficiency welding performance for thermoplastic sheets spanning 3–20 mm in thickness, supporting a maximum welding length of 2000 mm. Engineered specifically for industrial-grade applications, it excels in manufacturing tanks, chemical reservoirs, pipelines, ventilation systems, and water treatment systems. Featuring precise heating plate control with a ±5C tolerance and full compliance with DVS 2207 industry standards, this machine guarantees consistent, top-tier weld quality for mission-critical industrial operations.
Key Capabilities
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, acrylic (including twin-wall sheets)
Weldable thickness: 3–25 mm
Maximum welding length: 2000 mm
Supports horizontal circular welding; optional 90 vertical jointing
Automatic CNC welding with precise heating-plate control (±5C)
Teflon-coated heating plate, pneumatic locking clamps and automatic rolling clamp
PLC control with 10 touchscreen, wireless remote for belt motor
Applications
Water treatment systems
Water tanks and containers
Waste Gas Treatment Tower
Chemical storage tanks
Ventilation Systems
Scrubbers
Plating tanks
Swimming pools
Fire-fighting truck water tanks
Aquaculture Tanks
Product Features
Compliant with the welding standard DVS2207
Automatic welding system
Hinge connection welding more accurately
Wireless remote control for belt’s motor
Full automatic clamp for rolling
Pneumatic Locking Clamps
Dual digital display thermostat
The equipment used the best components of Festo, Siemens, and Schneider Electric
High-precision positioning of the sheet, stable and repeatable heating, leveling, and welding straight line
Multi-point control clamp lifting
Heating Plate Teflon was Coated by Dupont
Optional rocker arm device column device
Siemens Mitsubishi PLC with 10-inch touch screen
Weldable thickness 3-25 mm
Sheet Butt Fusion Welding Machine SWT-PH2000 Technical
Weldable Materials:PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets
Max. Working Length(mm):2000mm
Weldable thickness (mm):3-25mm
Min. cylinder diameter (mm):350mm
Pressure setting method:Digital
Pressure Controller:SMC electric proportional valve
Power consumption (kW):6.5kw
Power supply:AC 230V 1P 50/60Hz
Compressed air connection (bar):6-8 kg/cm²
Motor Power of Rolling Belt:3kw
Sheet Locking Clamps:Pneumatic
Welding System:CNC
Display:10 inch WEINVIEW
Hardware Control Panel:SIEMENS / MITSUBISHI PLC
Full Load Current (A):22A
Heating Plate Power:1P / 3.5kw
Power Cable Size:4*4mm²
The MM-Tech SWT-PH2000 delivers robust, high-efficiency welding performance for thermoplastic sheets spanning 3–20 mm in thickness, supporting a maximum welding length of 2000 mm. Engineered specifically for industrial-grade applications, it excels in manufacturing tanks, chemical reservoirs, pipelines, ventilation systems, and water treatment systems. Featuring precise heating plate control with a ±5C tolerance and full compliance with DVS 2207 industry standards, this machine guarantees consistent, top-tier weld quality for mission-critical industrial operations.
Key Capabilities
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, acrylic (including twin-wall sheets)
Weldable thickness: 3–25 mm
Maximum welding length: 2000 mm
Supports horizontal circular welding; optional 90 vertical jointing
Automatic CNC welding with precise heating-plate control (±5C)
Teflon-coated heating plate, pneumatic locking clamps and automatic rolling clamp
PLC control with 10 touchscreen, wireless remote for belt motor
Applications
Water treatment systems
Water tanks and containers
Waste Gas Treatment Tower
Chemical storage tanks
Ventilation Systems
Scrubbers
Plating tanks
Swimming pools
Fire-fighting truck water tanks
Aquaculture Tanks
Product Features
Compliant with the welding standard DVS2207
Automatic welding system
Hinge connection welding more accurately
Wireless remote control for belt’s motor
Full automatic clamp for rolling
Pneumatic Locking Clamps
Dual digital display thermostat
The equipment used the best components of Festo, Siemens, and Schneider Electric
High-precision positioning of the sheet, stable and repeatable heating, leveling, and welding straight line
Multi-point control clamp lifting
Heating Plate Teflon was Coated by Dupont
Optional rocker arm device column device
Siemens Mitsubishi PLC with 10-inch touch screen
Weldable thickness 3-25 mm
Sheet Butt Fusion Welding Machine SWT-PH2000 Technical
Weldable Materials:PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets
Max. Working Length(mm):2000mm
Weldable thickness (mm):3-25mm
Min. cylinder diameter (mm):350mm
Pressure setting method:Digital
Pressure Controller:SMC electric proportional valve
Power consumption (kW):6.5kw
Power supply:AC 230V 1P 50/60Hz
Compressed air connection (bar):6-8 kg/cm²
Motor Power of Rolling Belt:3kw
Sheet Locking Clamps:Pneumatic
Welding System:CNC
Display:10 inch WEINVIEW
Hardware Control Panel:SIEMENS / MITSUBISHI PLC
Full Load Current (A):22A
Heating Plate Power:1P / 3.5kw
Power Cable Size:4*4mm²
