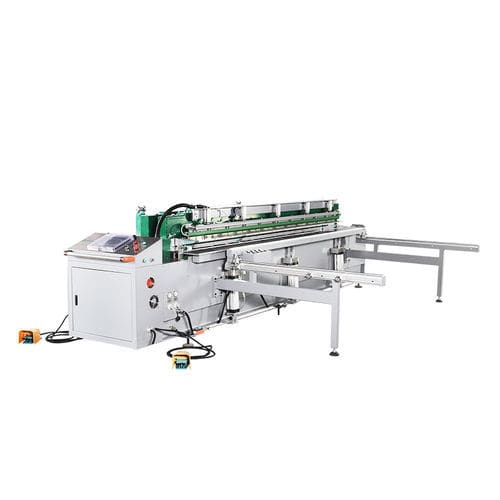

Electric bending machine SWT-PZ1500

for PVC profilesfor plastic profilessheet metal

Overview
This welding and bending machine is designed for processing thermoplastic sheets (PE, PP, PVC, PVDF, PC, ABS, Acrylic). It supports horizontal circular welding, flat welding, roll bending and single-sheet bending from 0° to 95°. The unit is intended for fabricating tanks, ducts and structural components where an integrated, space-efficient system is required.

MM-Tech SWT-PZ1500
The MM-Tech SWT-PZ1500 is engineered for precise, repeatable processing of thermoplastic panels up to 1500 mm working width. Integrated functions include flat welding, 5°–95° sheet bending and roll bending in a single all-in-one machine. Control is via Mitsubishi/SIEMENS PLC with digital temperature regulation and a 10" WEINVIEW display. Key components include an SMC proportional valve for pressure control, DuPont Teflon-coated heating plate and pneumatic multi-point clamps for stable positioning.

Features

• Compliant with welding standard DVS2207
• Automatic CNC-controlled welding system
• Hinge-connection welding for improved joint accuracy
• Wireless remote for belt motor operation
• Fully automatic rolling clamp for roll bending
• Pneumatic locking clamps with multi-point lifting control
• Dual digital thermostat displays
• High-precision sheet positioning, stable and repeatable heating and leveling
• Uses components from Festo, Siemens, Schneider Electric
• Optional rocker-arm or column device
• Weldable thickness range: 2–15 mm

Technical specifications (summary)
Weldable materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall sheets
Max. working width: 1500 mm
Weldable / bending thickness: 2–15 mm
Bending range: 0°–95° (supports 5°–95° bending and roll bending)
Minimum cylinder diameter: 280 mm
Pressure setting: Digital (SMC electric proportional valve)
Power consumption: 8 kW
Power supply: AC 380V 1P 50/60Hz
Compressed air: 6–8 kg/cm²
Cylinder motor: 2.2 kW
Sheet locking clamps: Pneumatic
Welding system: CNC
Display: 10" WEINVIEW
Control panel: SIEMENS / MITSUBISHI PLC
Full load current: 14 A
Power cable size: 4 × 2.5 mm²

Applications

• Tanks and containers
• Air ducts and ventilation components
• Chemical-resistant linings and scrubbers
• Galvanic baths and process tanks
• Aquaculture and water treatment equipment

Characteristics / technical specifications

• Model: SWT-PZ1500
• Brand: MM-Tech
• Max. working width: 1500 mm
• Compatible materials: PE, PP, PVC, PVDF, PC, ABS, Acrylic twin-wall sheets
• Weldable & bending thickness: 2–15 mm
• Bending: 0°–95° (per sheet) and roll bending
• Control: CNC welding system with SIEMENS / MITSUBISHI PLC and 10" WEINVIEW touchscreen
• Pressure control: digital, SMC electric proportional valve
• Heating plate: DuPont Teflon coating
• Standards: DVS2207 compliant
