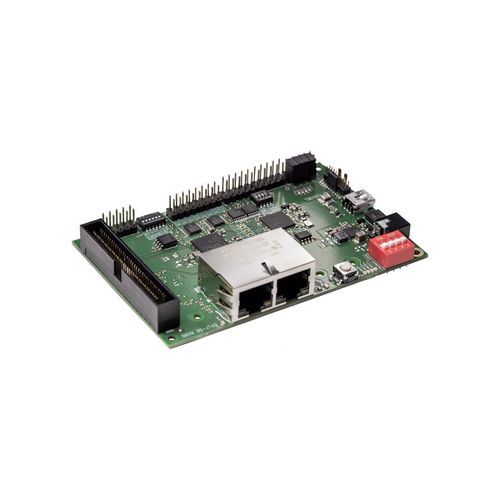

Evaluation board NXHX 90-JTAG

Product type
Development board for the netX 90 network controller (Hilscher NXHX 90-JTAG). Part number: 7833.000.

Highlights

• Development system with extensive peripheral functions
• Integrated JTAG debug interface
• Universal evaluation board for multiple industrial networks
• Delivered with Eclipse-based netX Studio development environment

Overview
The NXHX 90-JTAG is a software development board built around the netX 90 communication controller with a 32-bit ARM core. It enables joint execution of network protocol stacks and application software under a Real-Time Operating System (RTOS). The board provides universal hardware to evaluate hardware and software stacks for price-sensitive industrial applications.

The board includes an integrated debug interface (JTAG) and is supplied with netX Studio — an Eclipse-based toolset featuring a GCC toolchain, python-based WAF build scripts, a flasher and OpenOCD support. Developers can load and run applications with Hilscher protocol stacks and combine them with the licence-free Linux board support package for extended evaluation.

Supported protocols

• CC-Link IE Field Basic Slave
• OPC UA Server
• MQTT Client
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• IO-Link Master
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CC-Link Slave
• CANopen Slave

Order information
Product name | Part number | Brief description
NXHX 90-JTAG | 7833.000 | Development board

Documentation (selection)

• Open documentation overview (English)
• NXHX and NSHIELD (Datasheet) — EN
• netX 90 (Datasheet) — EN
• NXHX und NSHIELD (Datenblatt) — DE
• netX 90 (Datenblatt) — DE

Technical specifications

• Processor: netX communication controller with 32-bit ARM core
• Real-Time operating system used for network protocols and application
• Integrated debug interface (JTAG)
• Delivered with Eclipse-based netX Studio (GCC, WAF scripts, flasher, OpenOCD)
• Supports licence-free Linux board support package integration
• Universal evaluation hardware for system and software stack testing
• Reference circuit diagram provided for hardware development
• Expandable via additional plug-on modules to reproduce use cases
• Part number: 7833.000
• Product lifecycle status: Active
