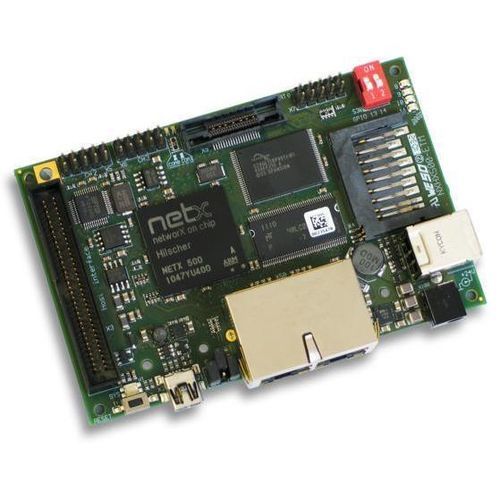

Evaluation board NXHX 500-ETM

Overview
The netX NXHX 500-ETM is a software development board designed to evaluate netX-based single-chip solutions. It integrates a 32-bit/200 MHz ARM CPU and comprehensive peripheral interfaces, enabling concurrent execution of network protocols and application code on a real-time operating system.

Development board details
The board provides a universal hardware platform with an integrated debug interface and is delivered with the HiTOP development environment (including an integrated GNU compiler). You can load and run your application with the supplied protocol stacks and combine it with the licence-free rcX Real-Time Kernel for testing and evaluation. The complete circuit diagram is provided as a basis for hardware development, excluding the debug interface. A JTAG breakout on the board allows connection of external debug probes (e.g., Hitex Tantino) to reproduce the same user interface and functionality.

Highlights

• Universal development system for netX-based controller and device networks
• Integrated debug interface and JTAG access for external debuggers
• Delivered with HiTOP development environment and GNU toolchain
• Cost-efficient evaluation platform for protocol stack integration and application testing

Protocols supported

• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• DeviceNet Master
• CANopen Master
• PROFIBUS DP Master
• CC-Link IE Field Basic Slave
• VARAN Client
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CC-Link Slave
• CANopen Slave

Order information
Product name | Part number | Brief description
NXHX 500-ETM | 7713.200 | Development board

Technical specifications

• Processor: netX 32-bit / 200 MHz ARM CPU
• Real-time OS: shared netX resources for network protocols and application
• Integrated debug interface on board with JTAG breakout for external debuggers
• Development environment: HiTOP with integrated GNU compiler
• Compatible with rcX Real-Time Kernel (licence-free) for protocol stack combination
• Universal hardware designed to evaluate complete system functionality
• Complete circuit diagram provided as basis for hardware development (debug interface excluded)
• Part number: 7713.200
• Lifecycle status: Active / mature
