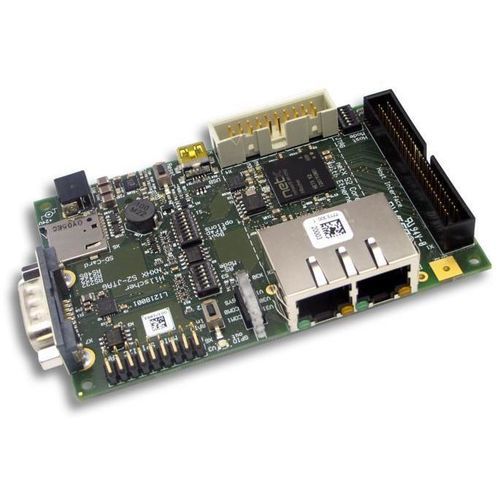

Evaluation board NXHX 52-JTAG

Product description
The netX network controller with its 32-bit ARM core provides the processing resources and peripheral interfaces required for single-chip solutions in price-sensitive industrial applications. Network protocols and the application share netX resources and execute in a real-time operating system.

Development and debugging
The most economical and practical way to evaluate the complete system is the netX software development board. The board features universal hardware, an integrated debug interface and is delivered with the HiTOP development environment from Hitex. You can load your application onto the board, run it with available protocol stacks and combine it with the licence-free rcX Real-Time Kernel for testing.
HiTOP includes an integrated GNU compiler and provides a comprehensive development and debug environment; code development is unlimited, while hardware testing requires the development board. The complete circuit diagram is supplied (excluding the debug interface) as a basis for custom hardware development. The board's JTAG interface allows connection of external debug tools (e.g. Hitex Tantino) for development and testing with the same user interface and functionality as the evaluation board.

Highlights

• Development system with extensive peripheral functions
• Integrated debug interface
• One evaluation board for all supported networks
• Cost-efficient and easy to use

Supported protocols

• CC-Link IE Field Basic Slave
• SmartWire-DT Master
• Sercos Slave
• PROFINET IO-Device
• PROFIBUS DP Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave
• DeviceNet Slave
• CC-Link Slave
• CANopen Slave

Order information
Product name | Part number | Brief description
NXHX 52-JTAG | 7773.300 | Development board

Technical specifications

• Model: NXHX 52-JTAG
• Controller: netX network controller with 32-bit ARM core
• Real-time operation: network protocols and application share netX resources in a real-time OS
• Development environment: HiTOP with integrated GNU compiler (included)
• Real-time kernel compatibility: compatible with licence-free rcX Real-Time Kernel
• Hardware: universal evaluation/development board with extensive peripheral functions
• Debugging: integrated debug interface and JTAG connectivity for external debuggers (e.g. Hitex Tantino)
• Documentation: complete circuit diagram provided (excluding debug interface)
• Product type: Development board
• Part number: 7773.300
• Product lifecycle: Active mature
